SL600 Corrugated Pipe Extrusion Line - ID100–OD630mm double wall corrugated pipes

Overview

Extruder

Corrugator

Cutter

Stacker

Cooling Tank

Drainage Pipe

SL600 Corrugated Pipe Extrusion Line

Name: SL600 SL600 Corrugated Pipe Extrusion Line
Brand: Suba Machinery
SKU: SL600
Availability: InStock

SKU: SL600

Contact for Quote

ID100–OD630mm double wall corrugated pipes. For drainage and sewage.

Полный технический паспорт доступен

Свяжитесь с нами для получения полных технических характеристик, чертежей и вариантов конфигурации для вашего диапазона диаметров труб.

Наши специалисты свяжутся с вами в течение 24 часов

SL600 Key Features

Advanced technology for reliable production

Pipe range: ID100–OD630mm

Max output: 1100 kg/h

Installed power: 465 kW

Production power: 190–220 kW

Two corrugator lengths: 36 or 38 pairs

Moulds compatible with SL300, SL800, SL1000 & SL1200

High and stable vacuum technology

What This Line Produces

Real output from a SL600 production line

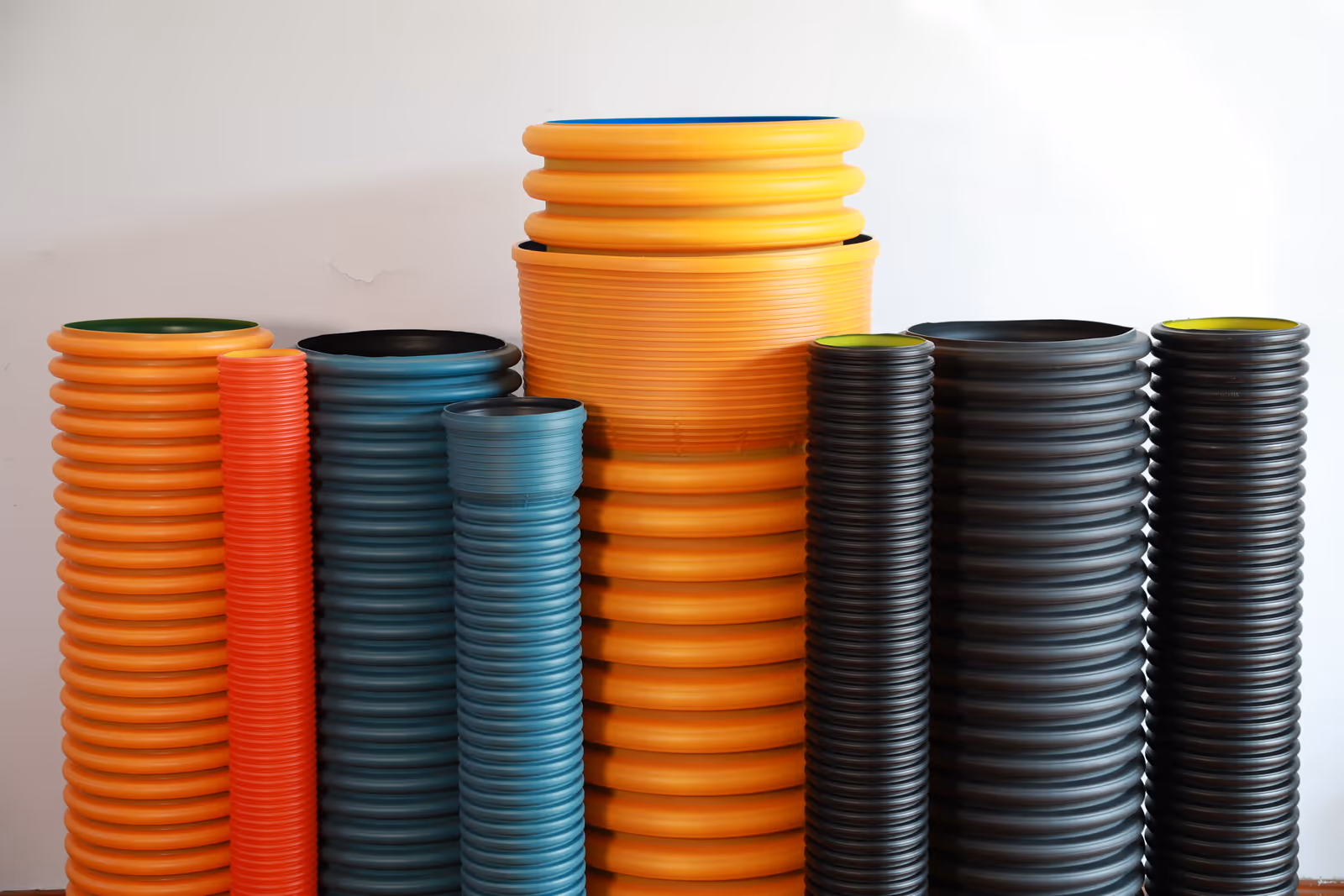

Drainage & Sewage Pipes

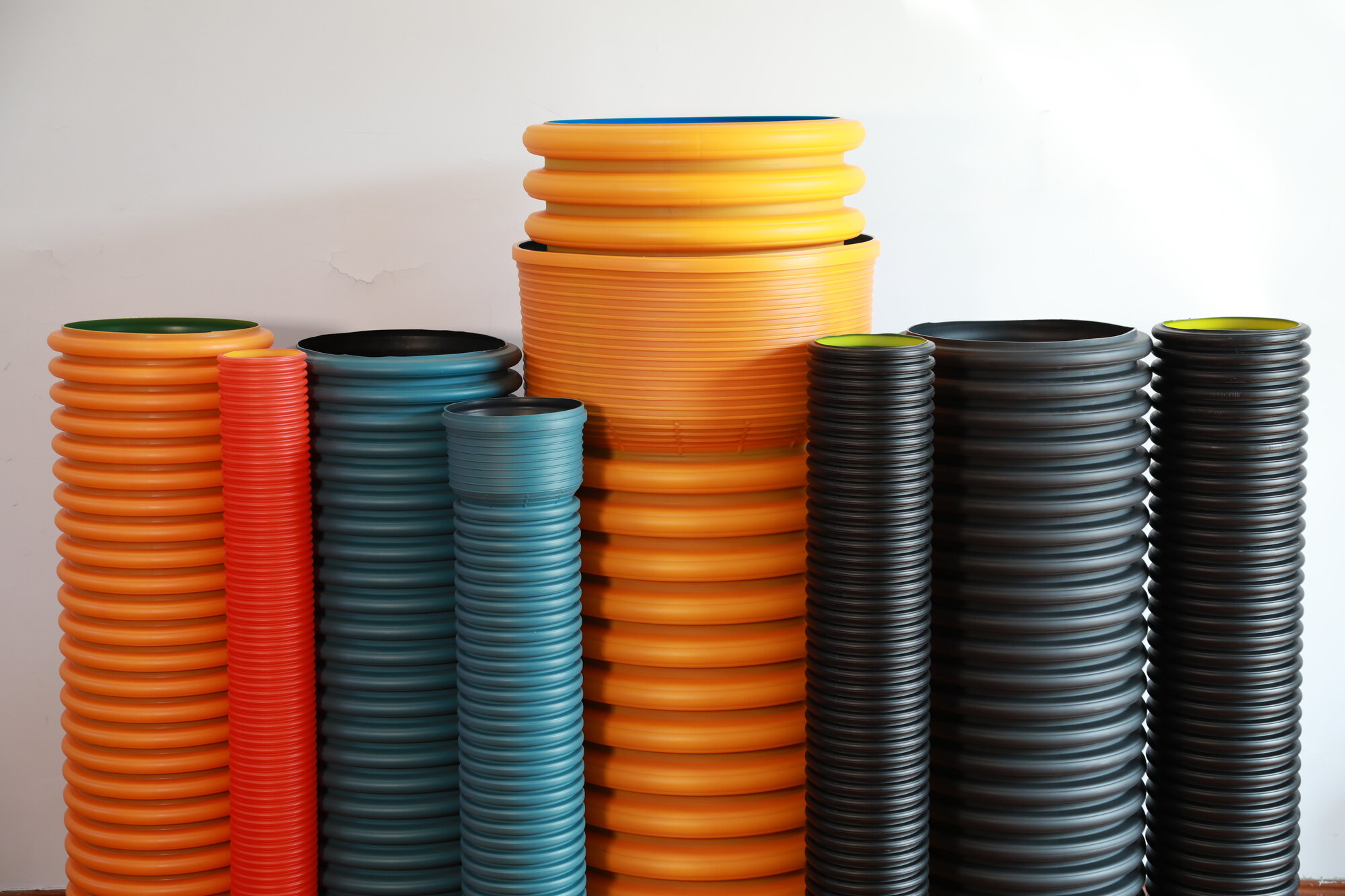

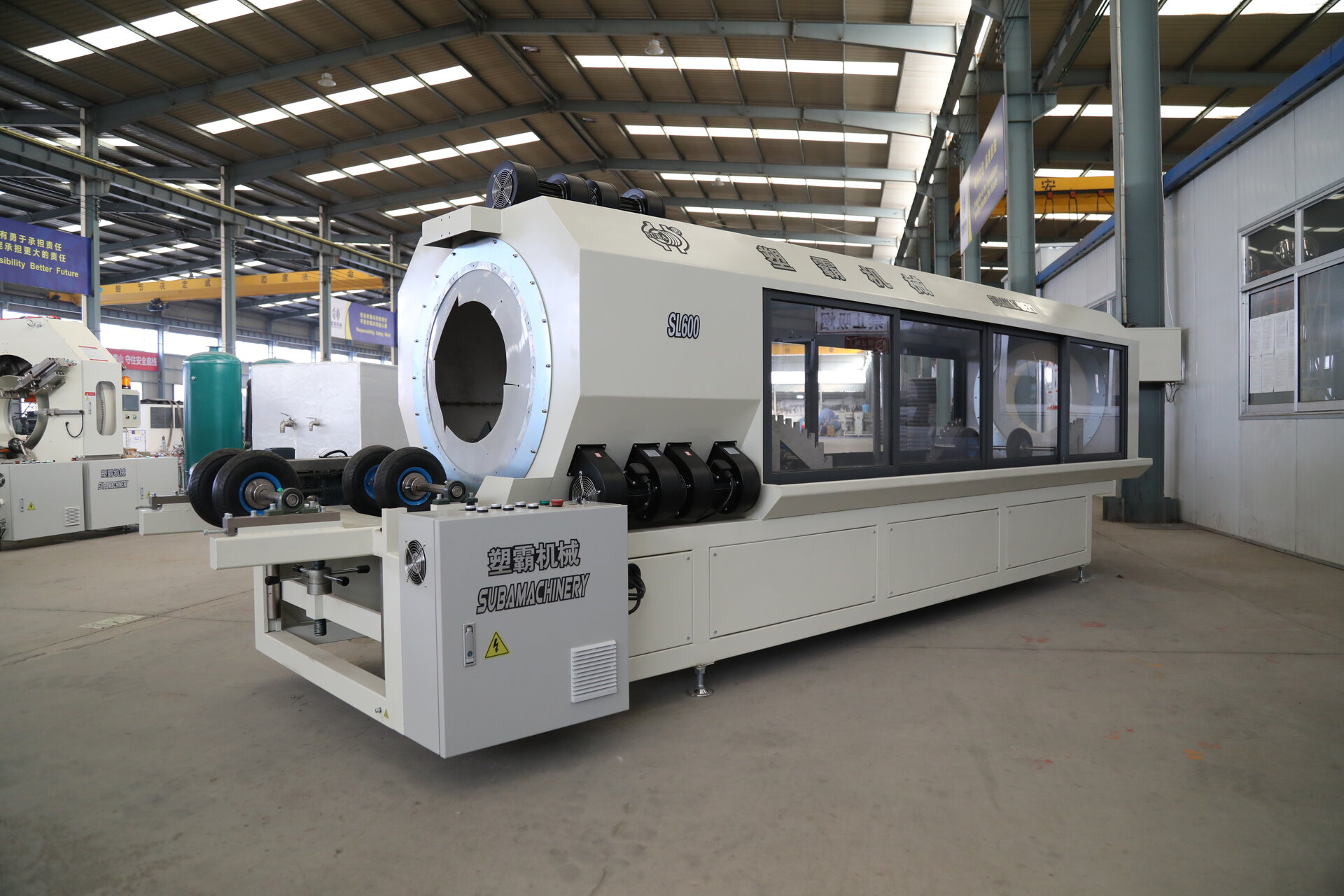

Pipe Output Variety

Municipal Drainage System

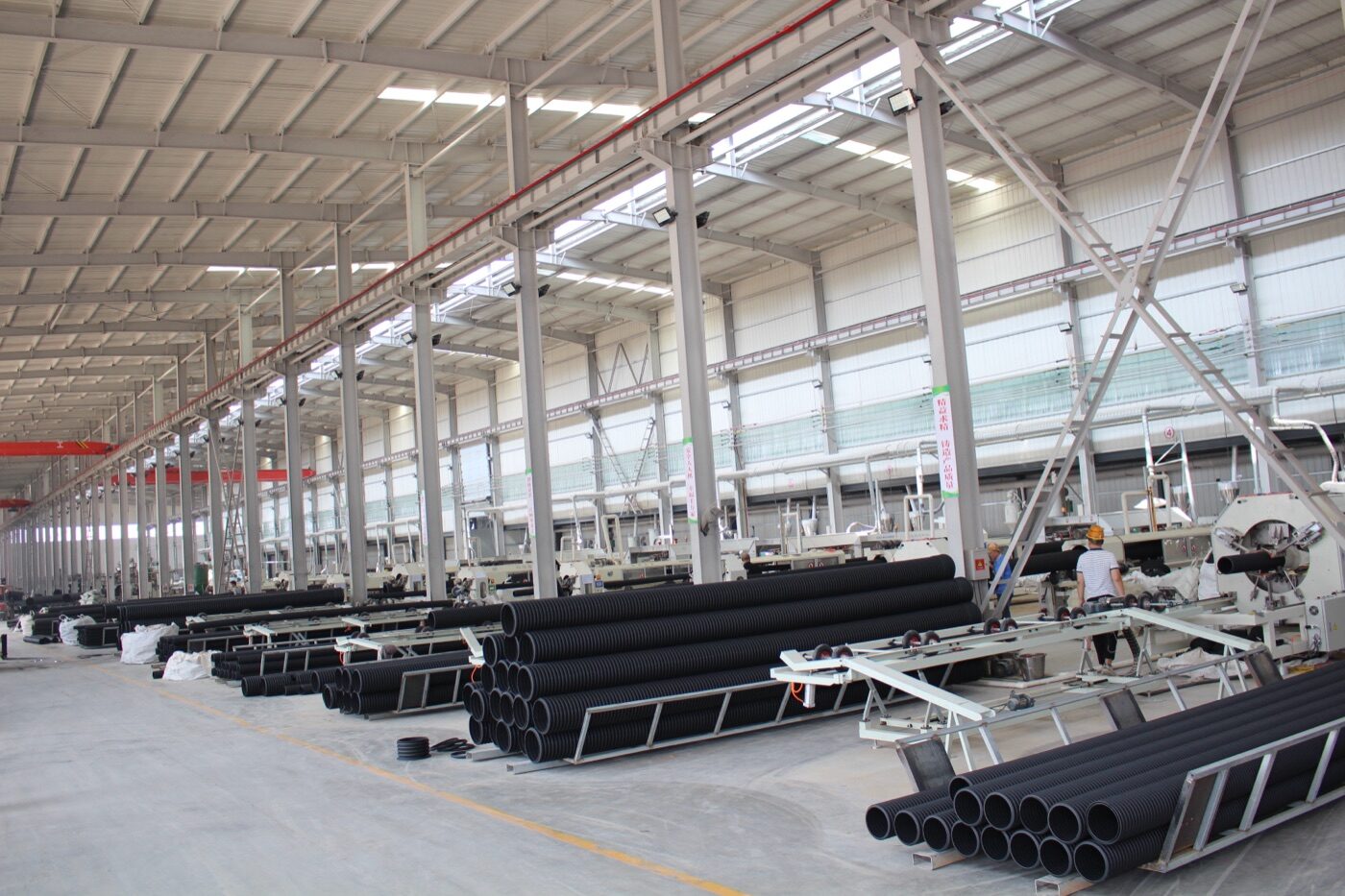

Civil Infrastructure

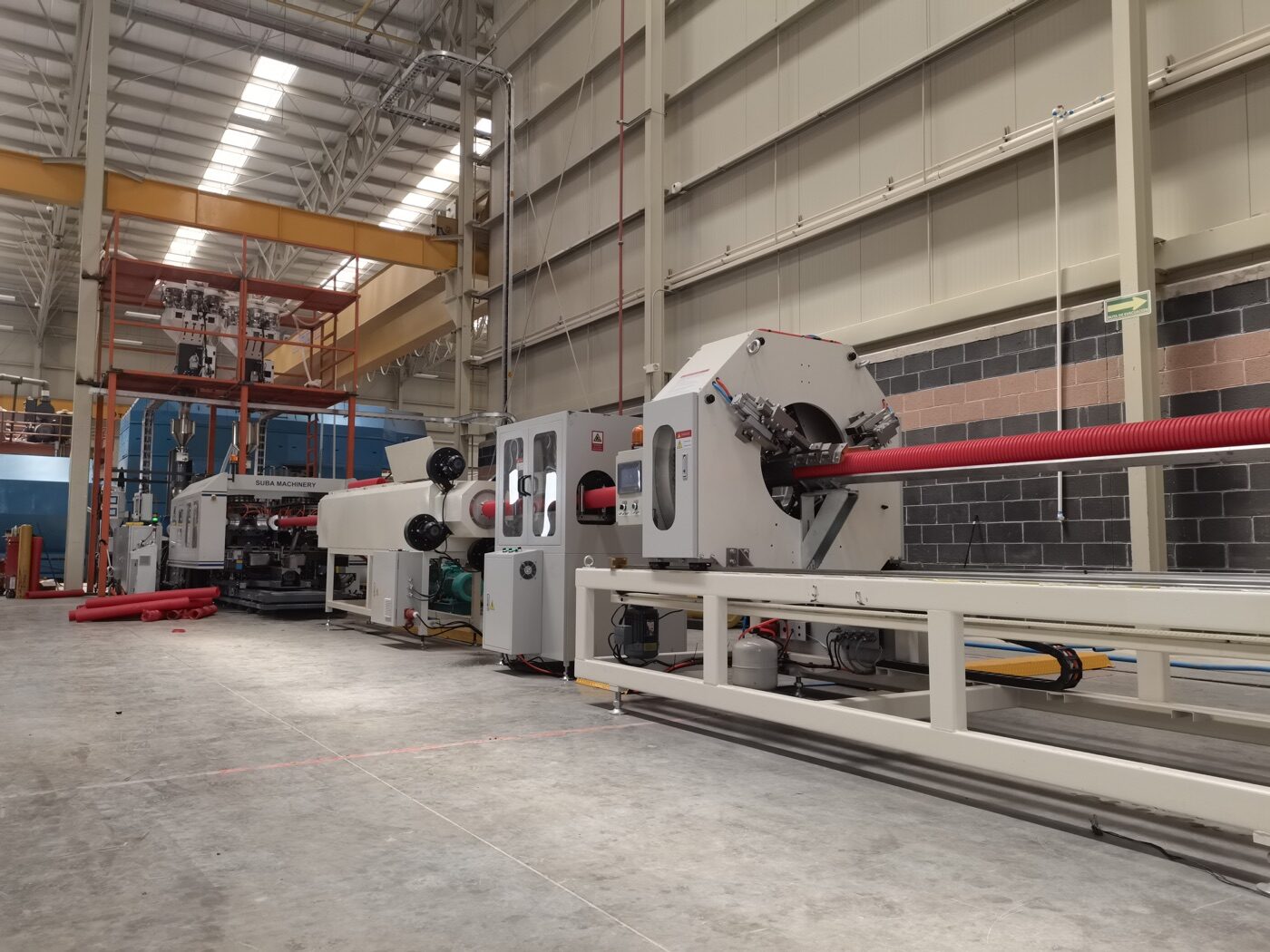

Installation — Mexico

SL600 — See It Running

Watch the production line in operation. Full-speed corrugated pipe extrusion from raw material to finished product.

Запросить живую демонстрацию

Production Process

How raw materials become finished pipes

1

Material Preparation

2

Extrusion

3

Die Head Forming

4

Corrugation

5

Cooling & Shaping

6

Cutting & Stacking

Need Component Specifications?

Contact us for detailed specifications, pricing, and compatibility information.

WhatsApp: +86-18765639190 amywang@subamachinery.com

Mould-Compatible Lines

Moulds on this line are interchangeable with these production lines — no corrugator platform adjustment required.

SL300ID100–OD315 SL800ID200–OD1000 SL1000ID400–OD1200 SL1200ID600–OD1400

Components & Accessories

Compatible accessories for this production line configuration

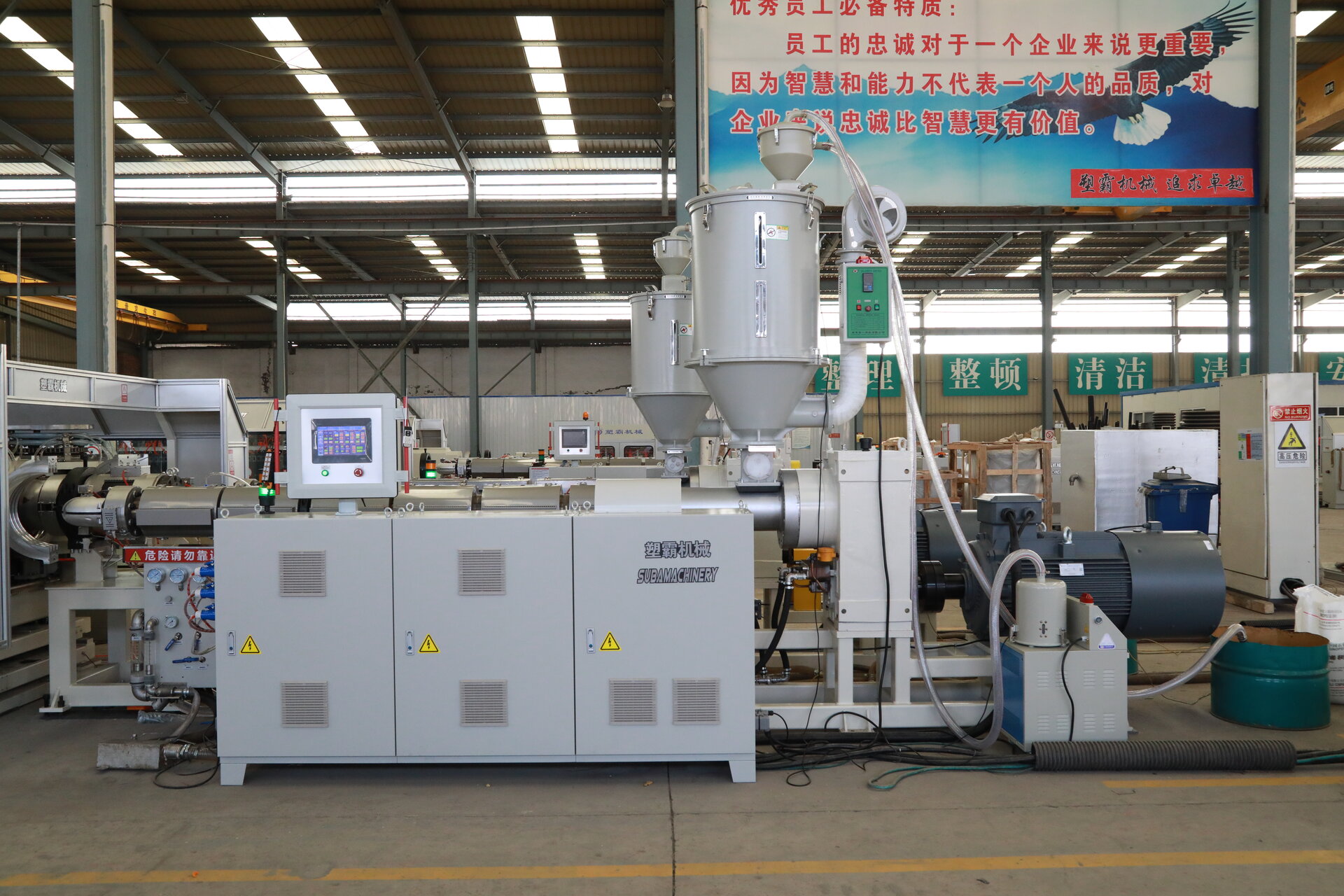

Extruder

SJ60, SJ75, SJ90, SJ120, SJ150 single screw extruders with special screw design, suitable for PE, PP and other materials. Using buffering mixing section and large L/D ratio 36:1 screws for good plasticization, high output and wide adaptability to raw materials. Bimetallic screw and barrel effectively improve wear resistance and corrosion resistance, achieving longer service life.

SJ60, SJ75, SJ90,Using buffering mixing

5 featuresView Details

Corrugator

The corrugator adopts a closed loop pressure water cooling system for high forming efficiency. Patented design — mould replacement requires no water tube disassembly. All mould sizes share the same center height; no platform adjustment needed when changing moulds. Left and right frames open and close electrically for easy maintenance. Equipped with UPS and remote control system.

Closed loop pressureAdvanced and high-strength

13 featuresView Details

Cooling Tank

Stainless steel cooling tank for secondary cooling of double wall corrugated pipes. Equipped with traction device. High-pressure large capacity water removal device at outlet blows away cooling water on the pipe surface. Synchronous operation with the corrugator. Environmentally friendly: water is fully recycled.

Made of stainlessThe water outlet

5 featuresView Details

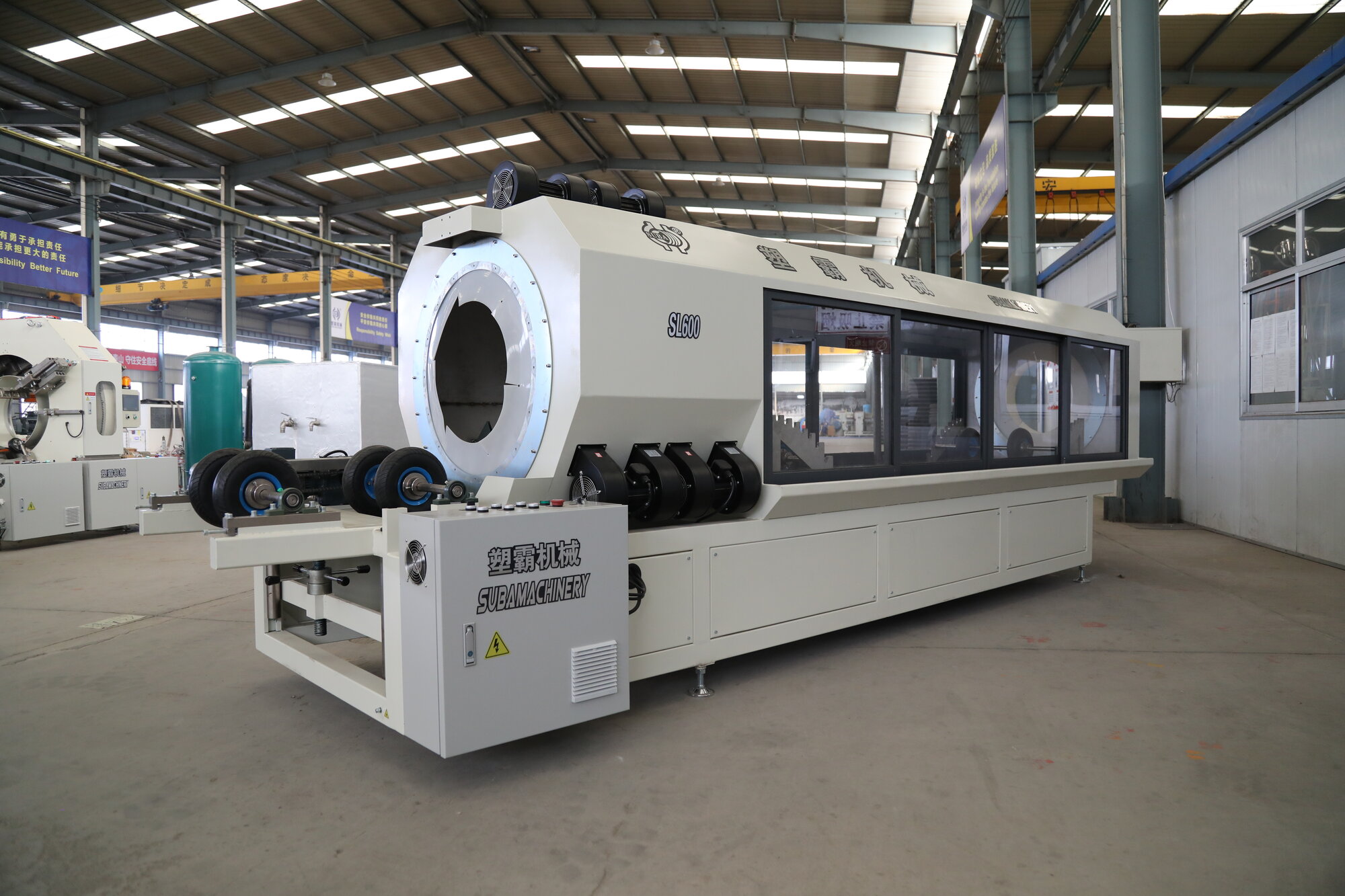

Cutter

High precision cutter independently developed by Suba machinery for accurate cutting of straight pipes and flared pipes. Double blade chipless cutting — noise-free and dust-free. Innovative trigger device guarantees continuously precise cutting. Italian imported dual hydraulic system with turntable bearings and linear guides achieves center-symmetrical, stable operation.

Chipless cutter enableThe cutter's innovative

5 featuresView Details

Stacker

Double wall corrugated pipe extrusion line stacker automatically discharges pipes, equipped with a weighing system. Electric height adjustment reduces labor fatigue. Weighing system monitors pipe production status in real time. Finished pipes can be temporarily stored on the stacker or moved directly into a transport vehicle. Supports automatic pipe turning.

Automatic unloading.Automatic height adjustment.

6 featuresView Details
