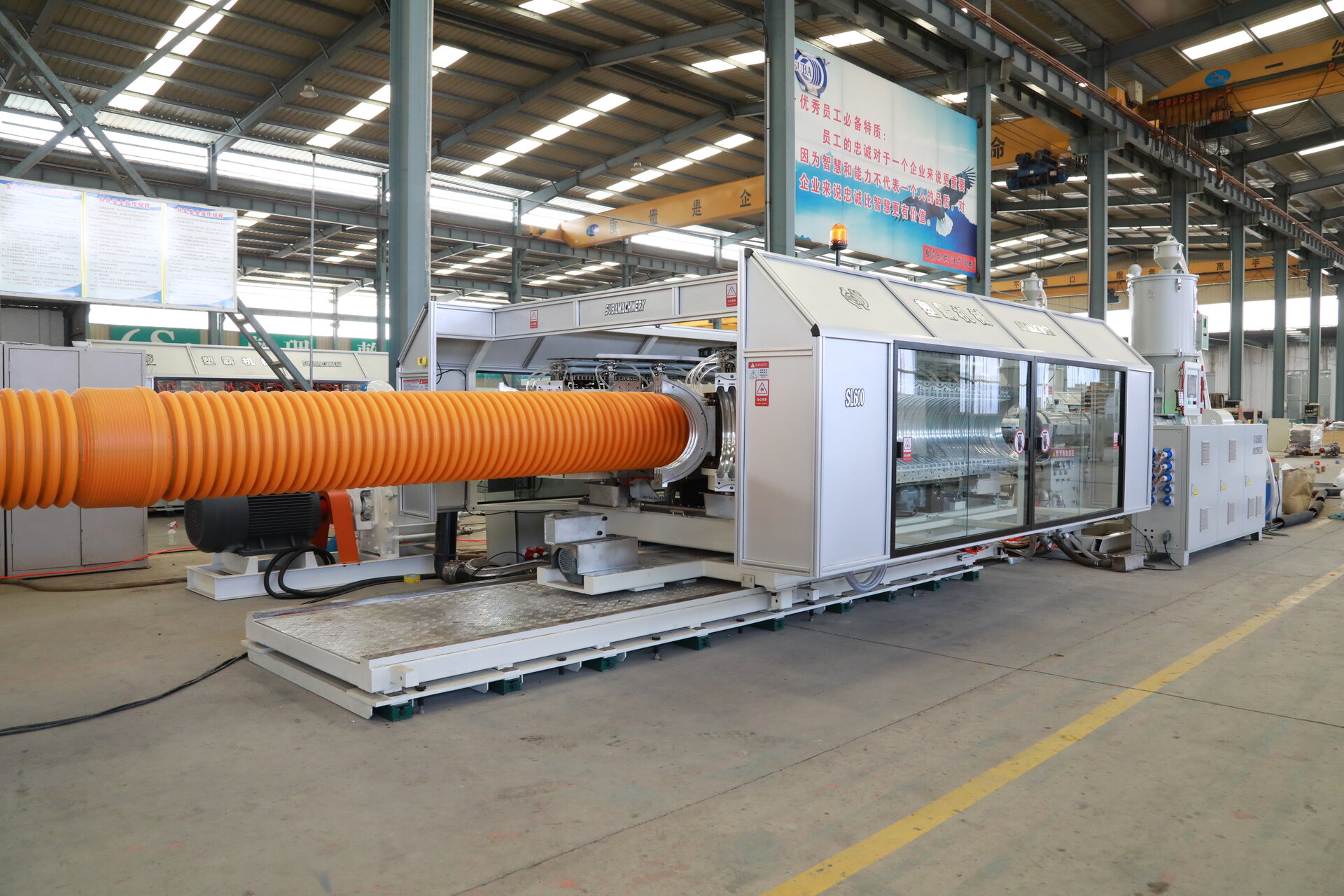

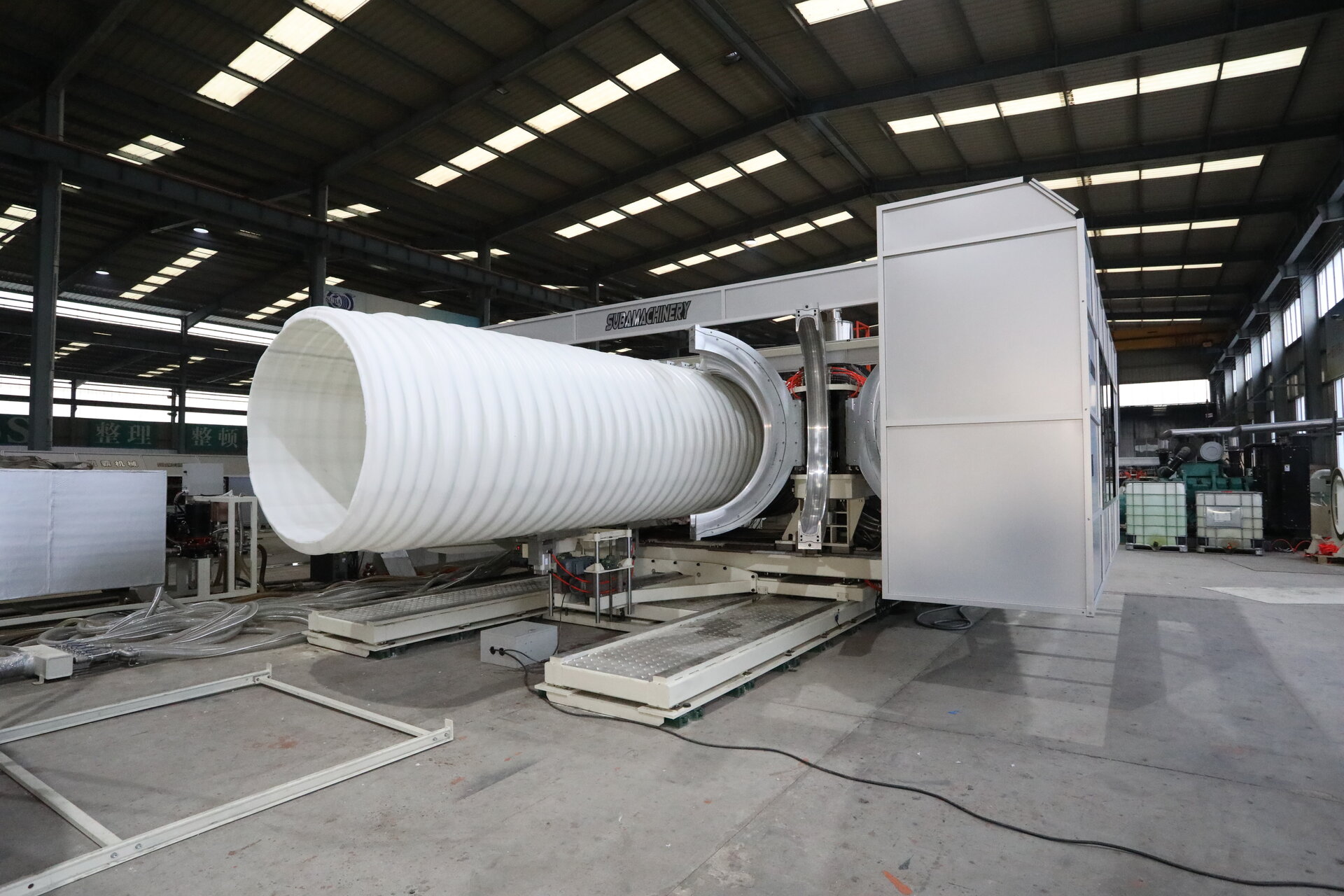

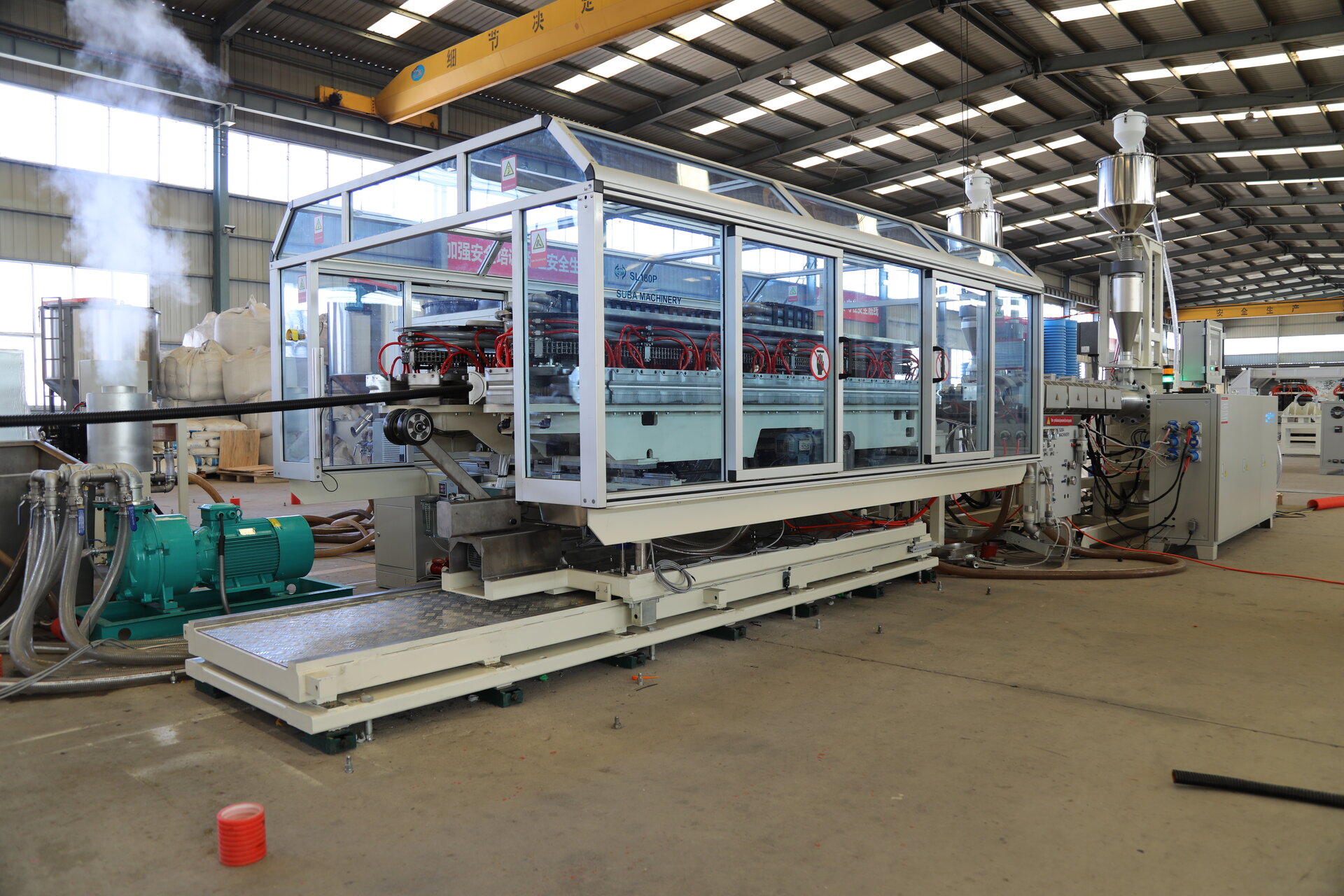

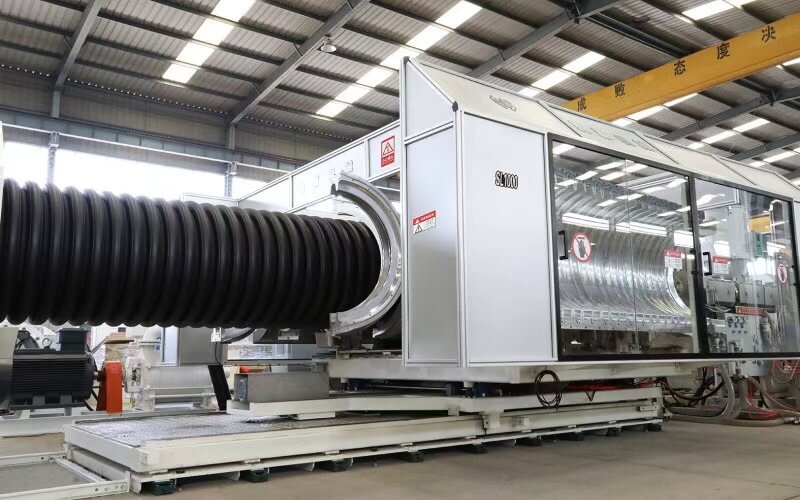

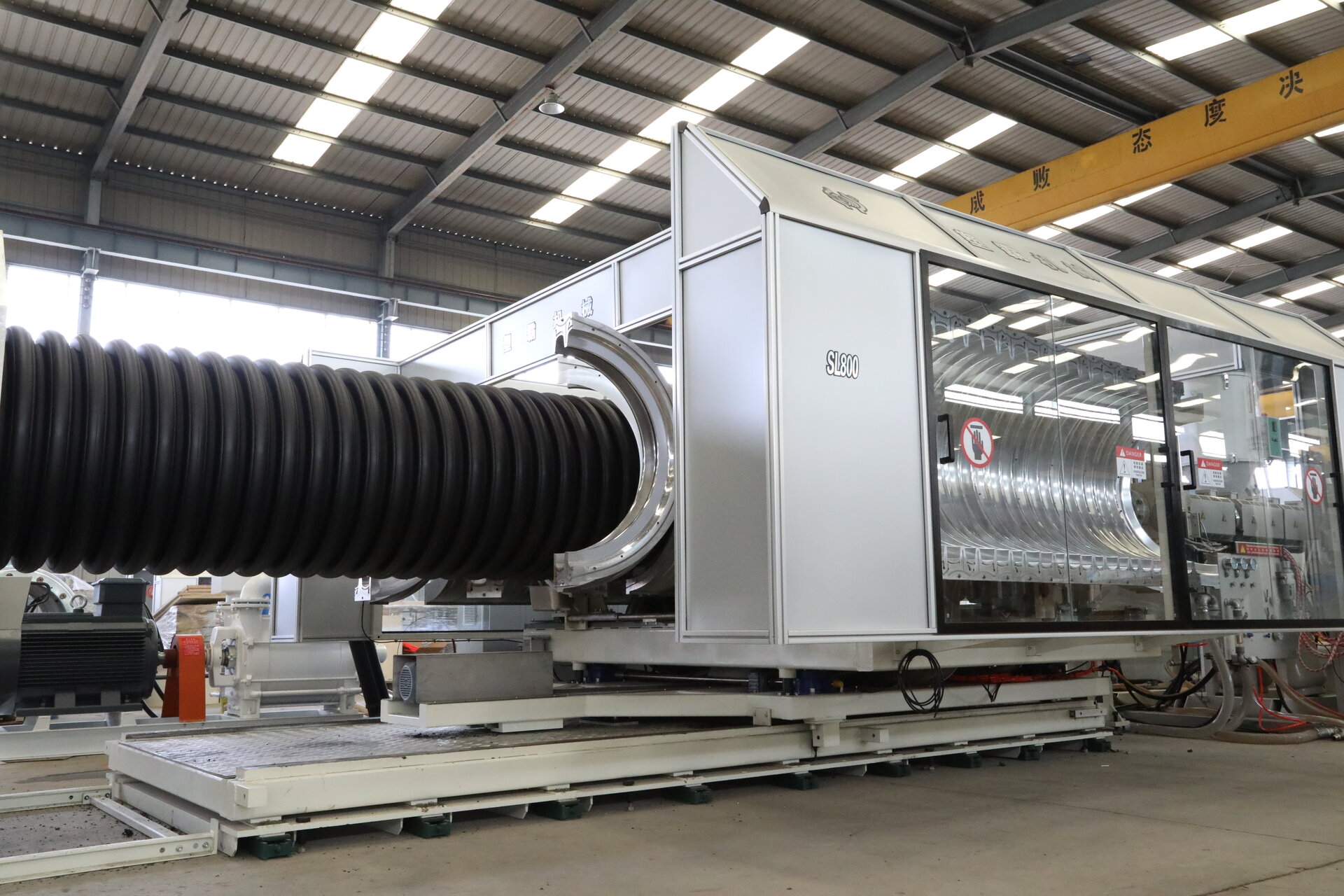

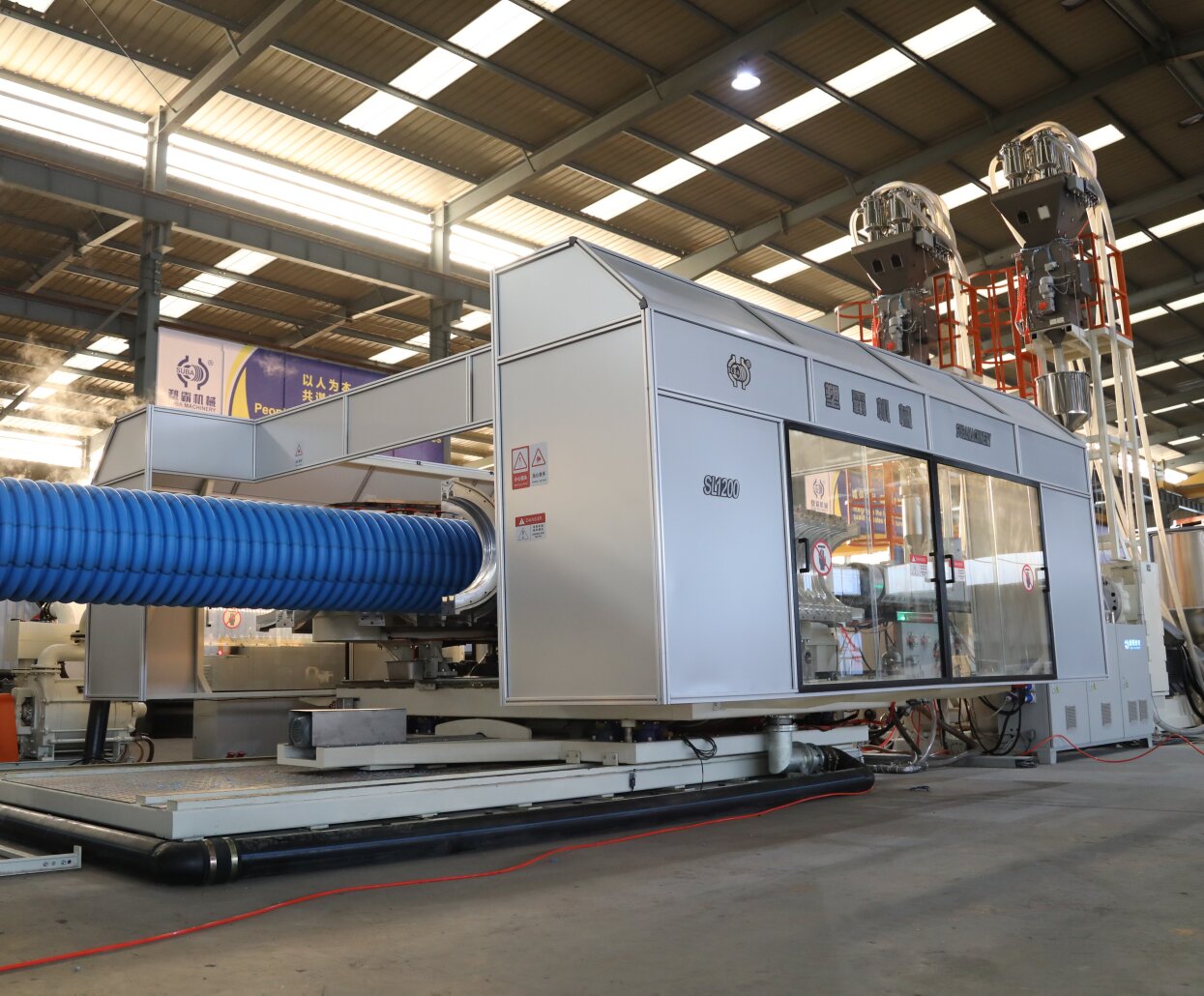

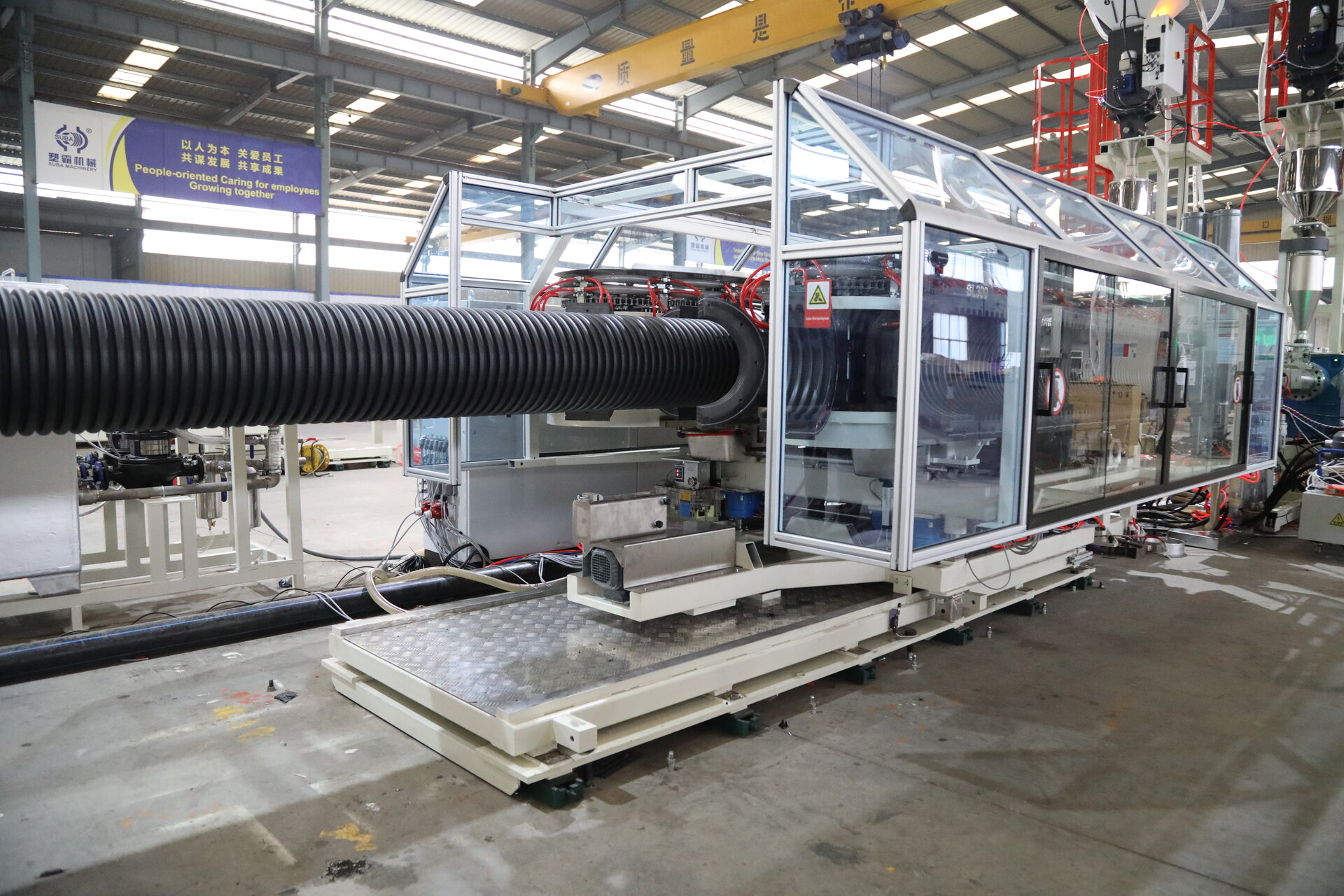

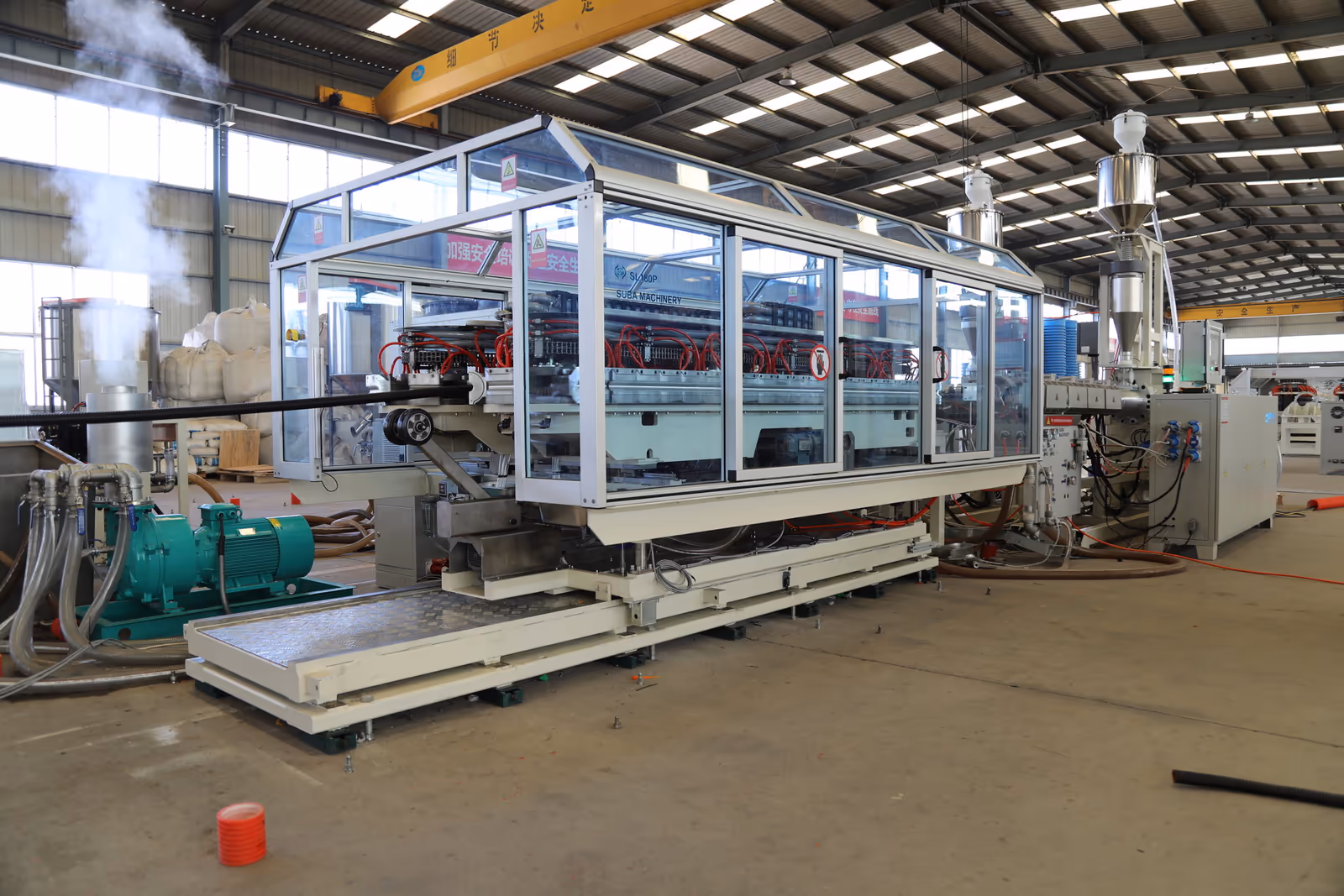

The corrugator adopts a closed loop pressure water cooling system for high forming efficiency. Patented design — mould replacement requires no water tube disassembly. All mould sizes share the same center height; no platform adjustment needed when changing moulds. Left and right frames open and close electrically for easy maintenance. Equipped with UPS and remote control system.

Configuration	Line	Pipe Diameter
SL180/SL180P corrugator	SL180	ID32–OD200
SL300 corrugator	SL300	ID100–OD315
SL600 corrugator	SL600	ID100–OD630
SL800 corrugator	SL800	ID200–OD1000
SL1000 corrugator	SL1000	ID400–OD1200
SL1200 corrugator	SL1200	ID600–OD1400
SL1600 corrugator	SL1600	ID1000–OD2000

Configuration	Line	Pipe Diameter
SL180/SL180P corrugator	SL180	ID32–OD200
SL300 corrugator	SL300	ID100–OD315
SL600 corrugator	SL600	ID100–OD630
SL800 corrugator	SL800	ID200–OD1000
SL1000 corrugator	SL1000	ID400–OD1200
SL1200 corrugator	SL1200	ID600–OD1400
SL1600 corrugator	SL1600	ID1000–OD2000

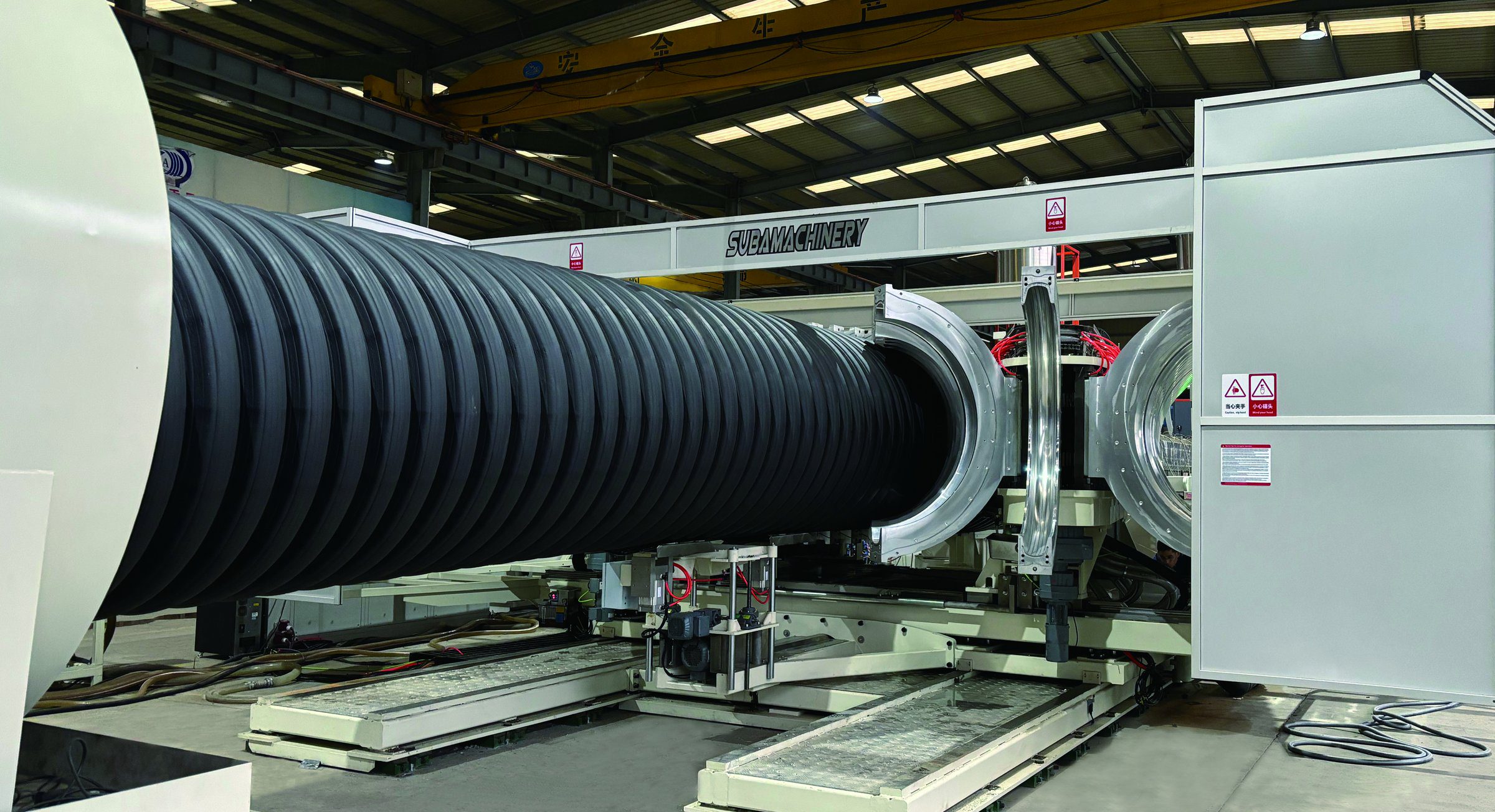

Corrugator

Key Features

Closed loop pressure water cooling system – high forming efficiency.

The powerful and high-automatic vacuum achieves easier operation, uniformity of the pipe circumferential wall thickness and nice pipe appearance.

Fast moulds' changeover process. The moulds are not connected to any water tubes, which means there is no need to unplug and plug the water tubes when changing moulds. The moulds can be easily removed and installed by rotating the eccentric disk. – Invention patent.

The length of the cooling water inlet and outlet tubes are fixed, the tubes are arranged more closely, which avoids the water leakage caused and equipment damage by tubes stuck between adjacent moulds.

The main cooling water way (360-degree smooth rotation) adopts the circulation design to ensure no inertial impact. – Invention patent.

Equipped with water temperature control system.

A comprehensive automatic lubrication system ensures lubrication at all points of the corrugator. –Fully automatic centralized lubrication system.

Touch screen technology with different languages.

Schneider PCC control system. Higher reliability and higher control precision.

Electrical control synchronized with extruders and downstream equipment.

Equipped with UPS and remote control system.

Corrugators of different lengths are suitable for producing pipes of different lengths.
