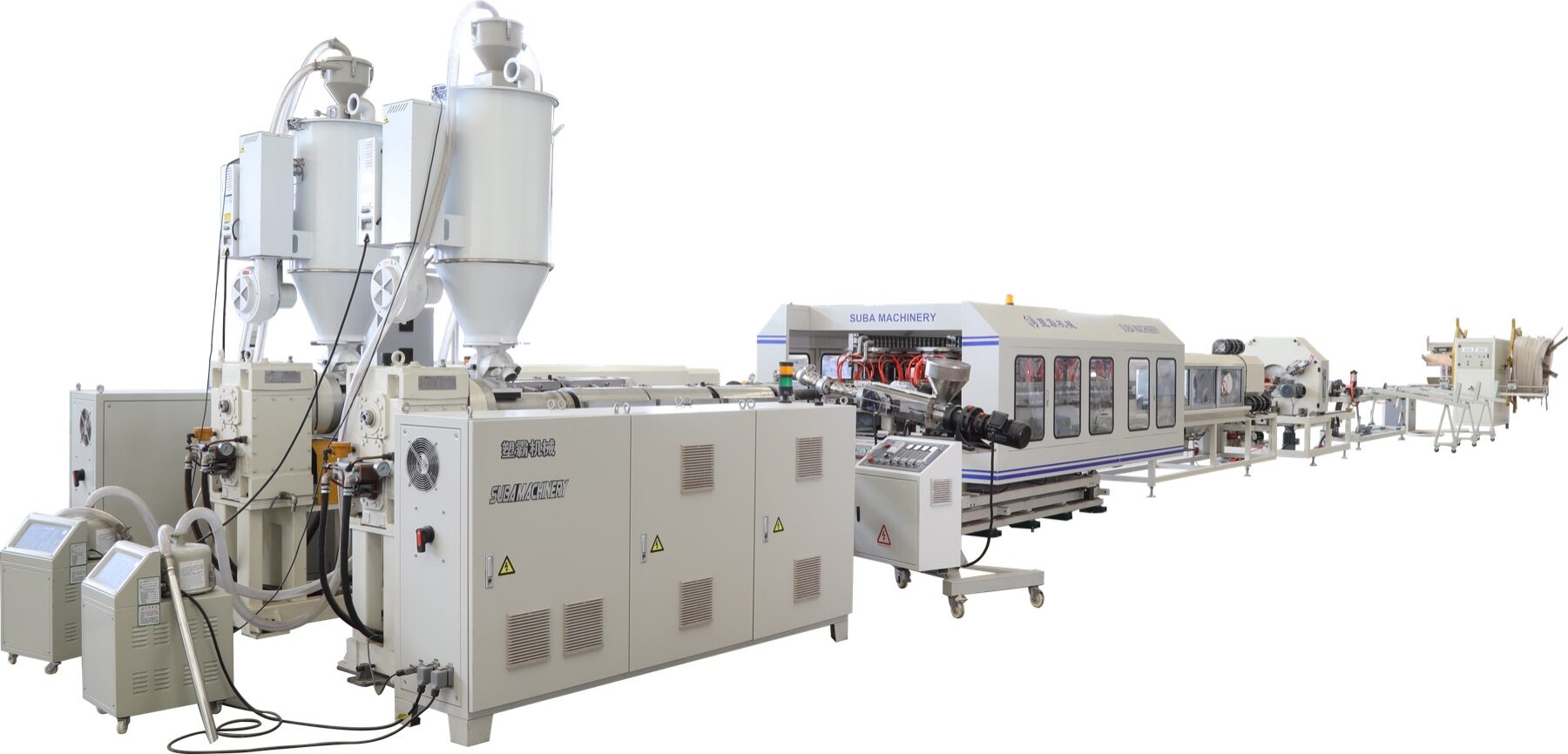

SL180 Corrugated Pipe Extrusion Line

Name: SL180 SL180 Corrugated Pipe Extrusion Line
Brand: Suba Machinery
SKU: SL180
Availability: InStock

SKU: SL180

Contact for Quote

ID32–OD200mm double wall corrugated pipes. For cable protection, water collection, ventilation system, bridge and drainage.

Select Model

Полный технический паспорт доступен

Свяжитесь с нами для получения полных технических характеристик, чертежей и вариантов конфигурации для вашего диапазона диаметров труб.

Наши специалисты свяжутся с вами в течение 24 часов

SL180 Key Features

Advanced technology for reliable production

Pipe range: ID32–OD200mm

Max output: 550 kg/h

Installed power: 302 kW

Production power: 88–120 kW

Two corrugator lengths: 36 or 48 pairs

High and stable vacuum technology

Footprint: 35×4.5×3.2 m

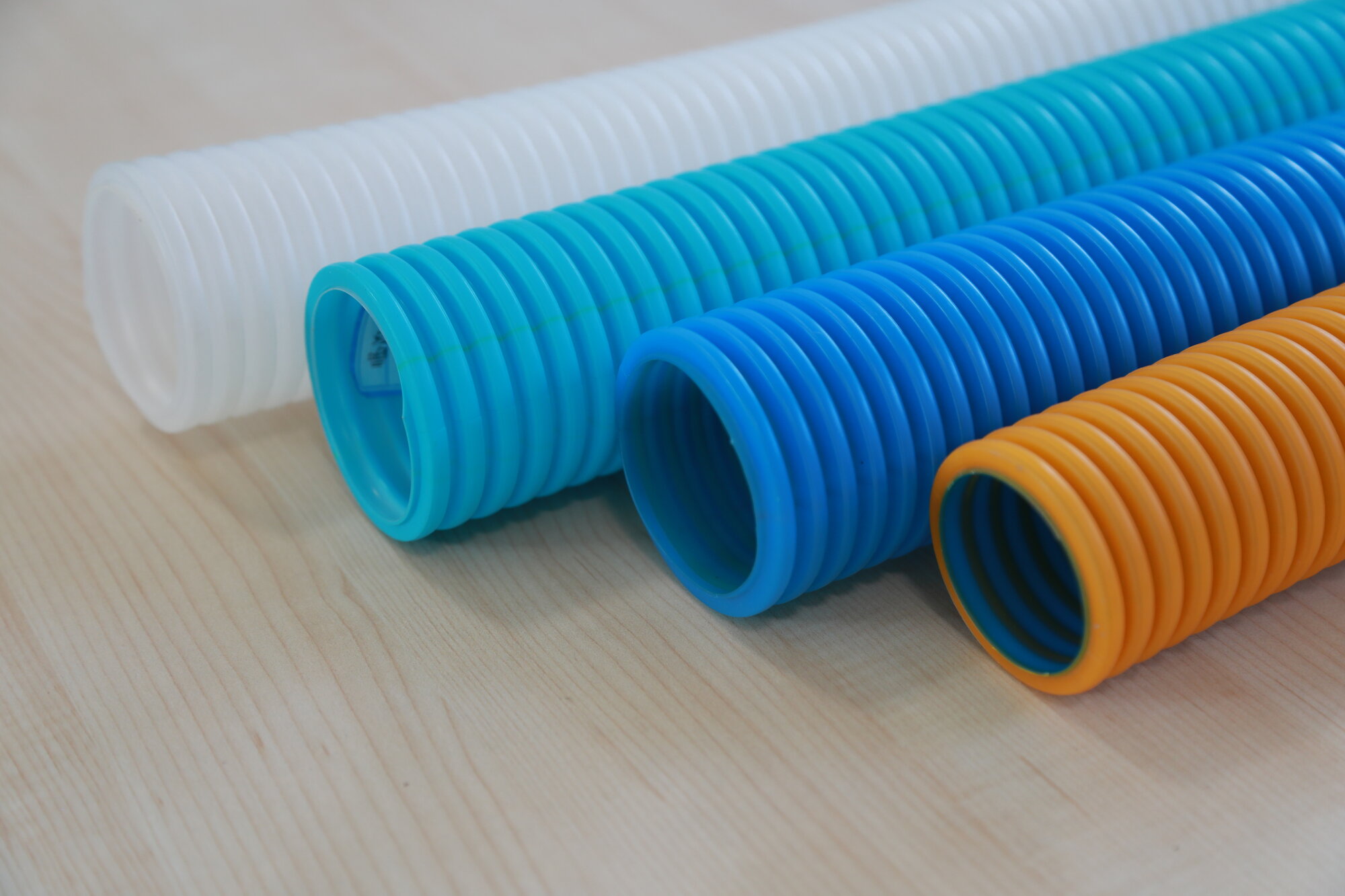

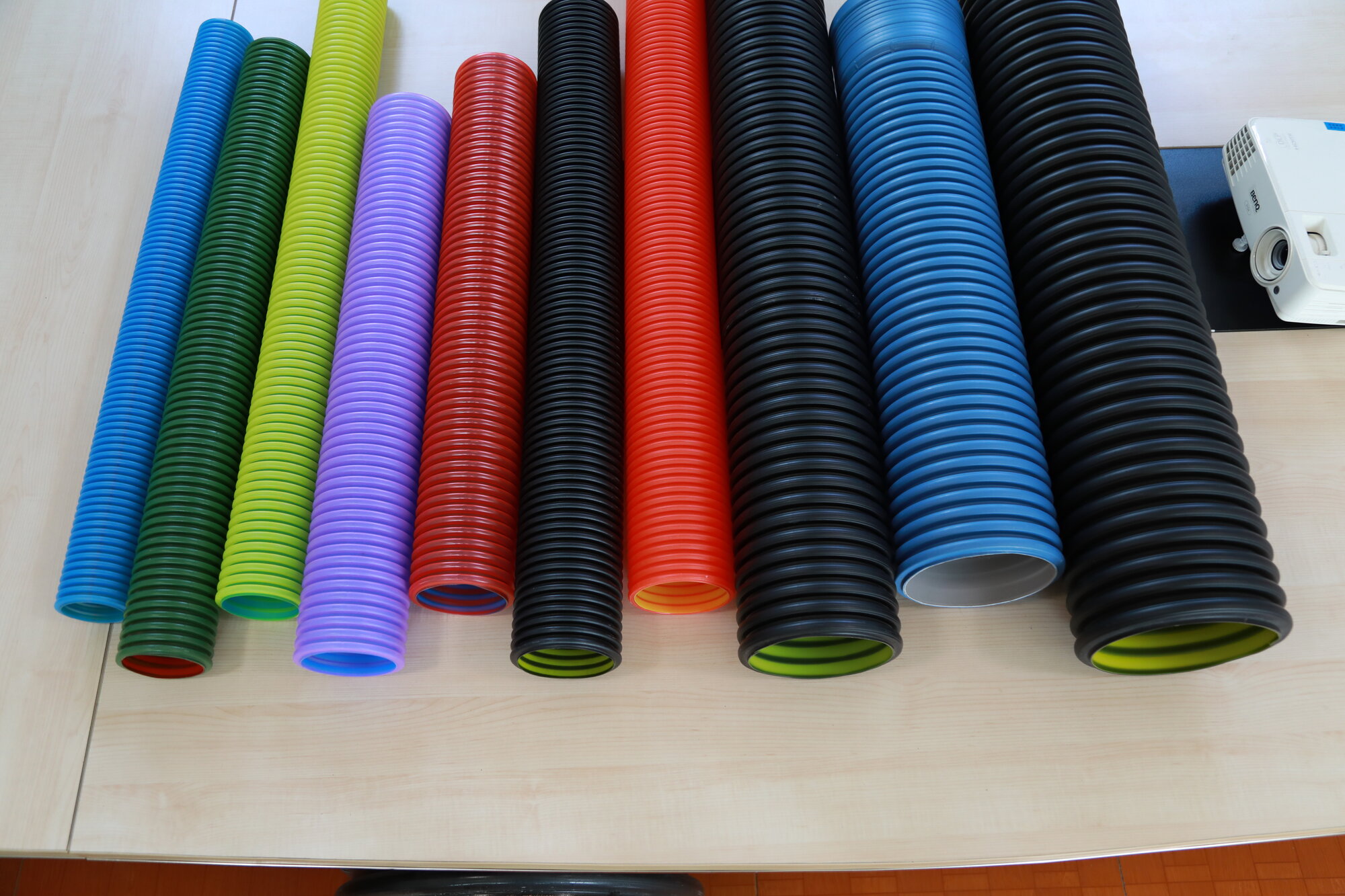

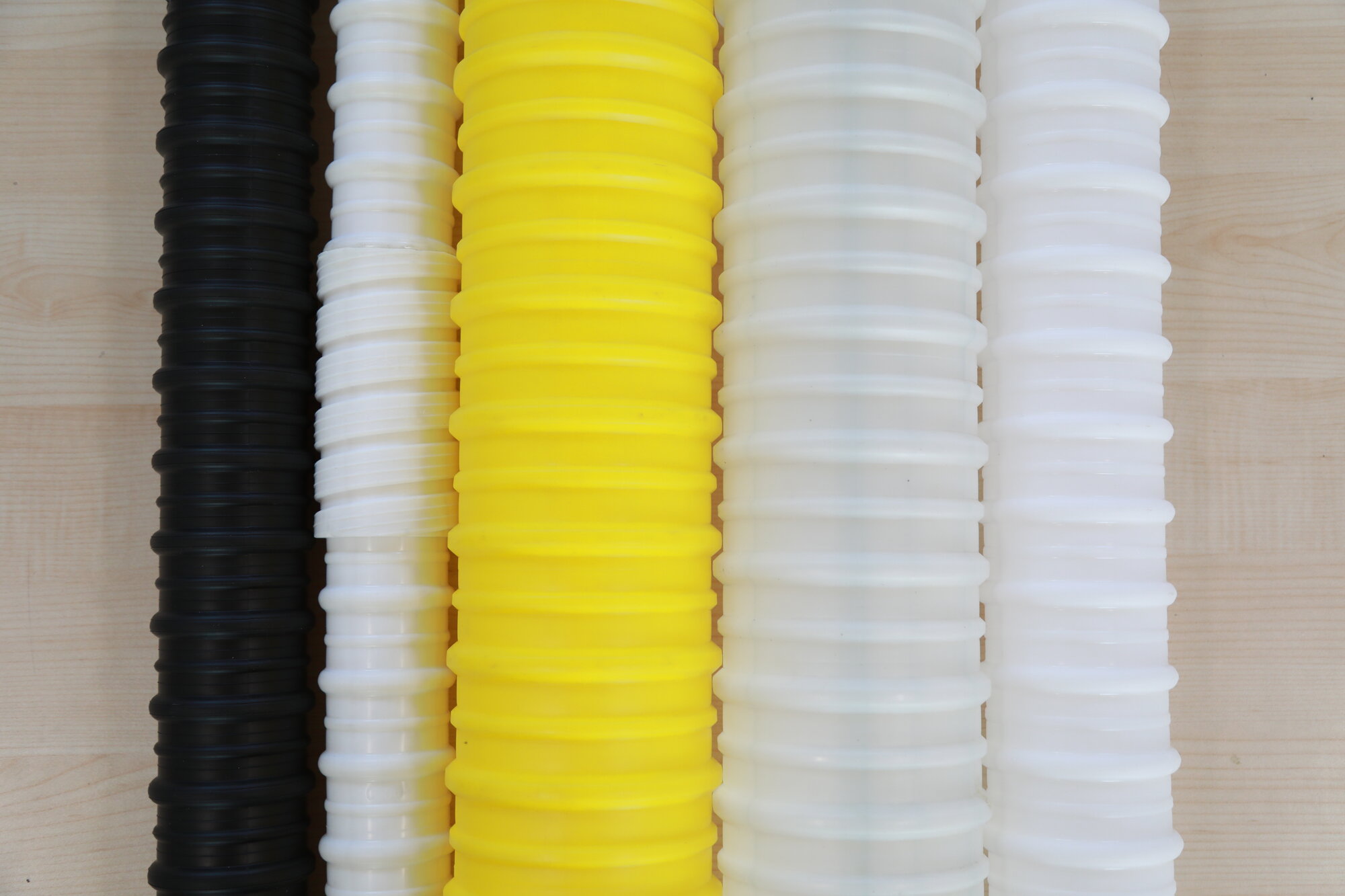

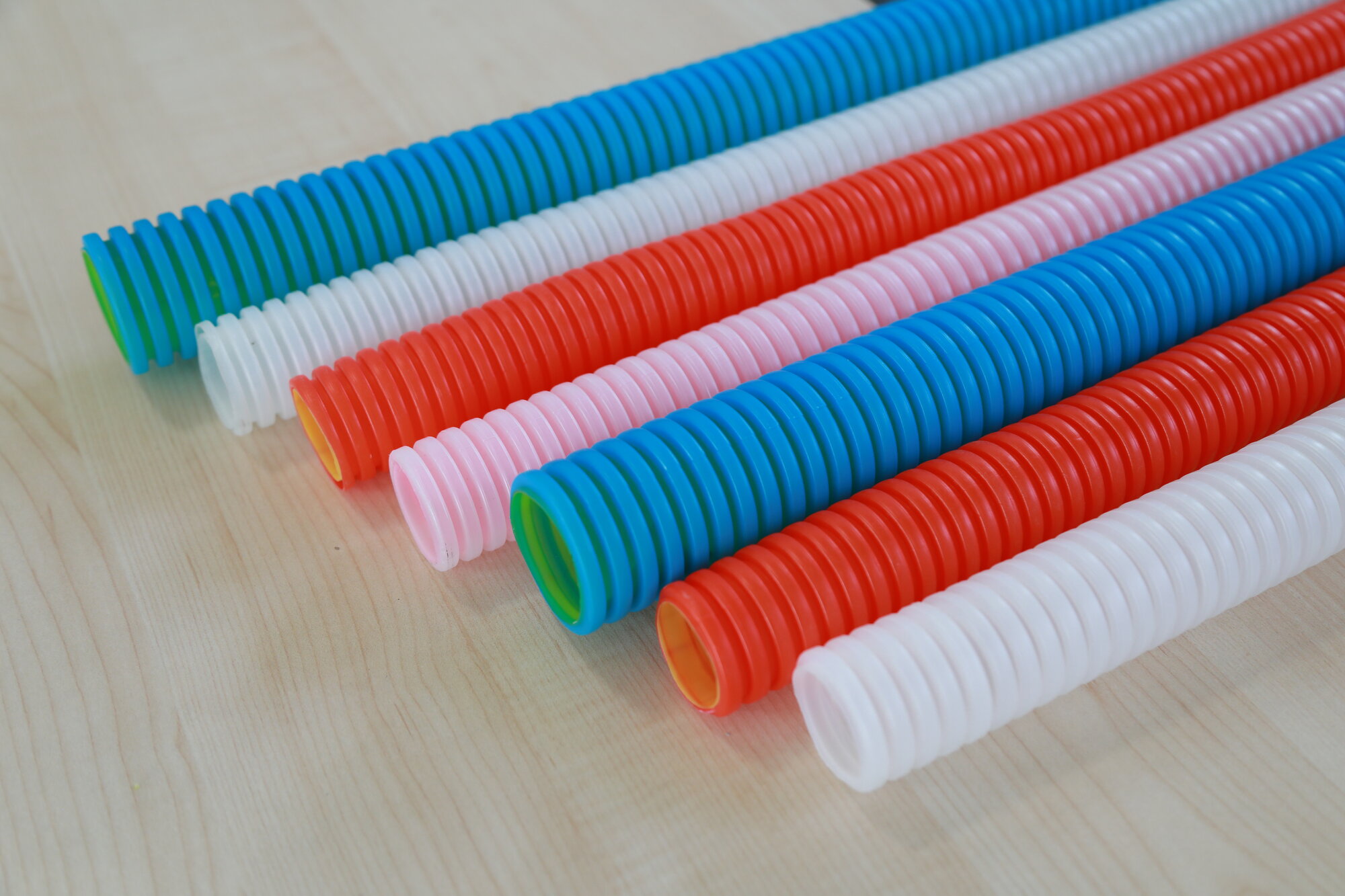

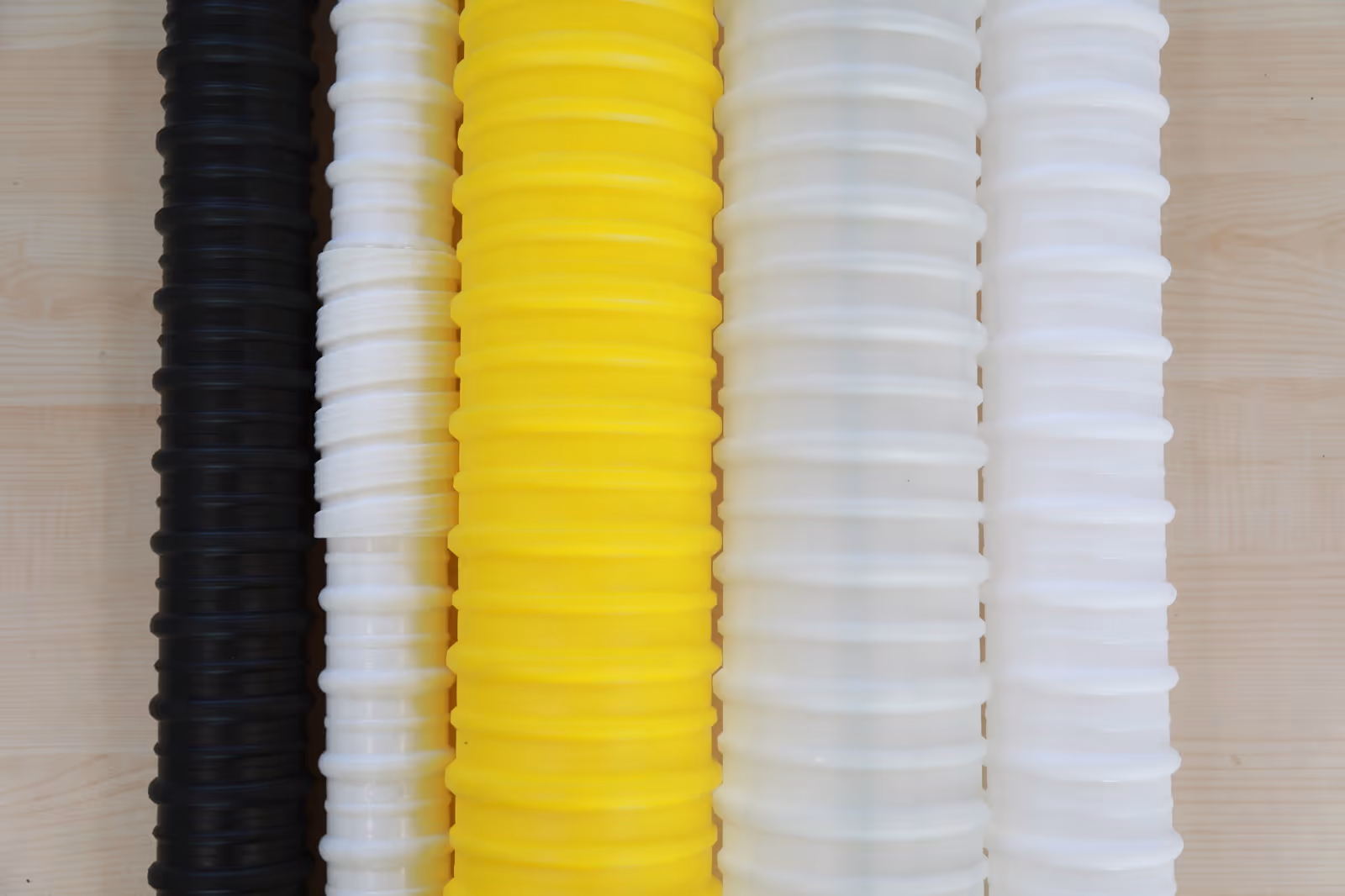

What This Line Produces

Real output from a SL180 production line

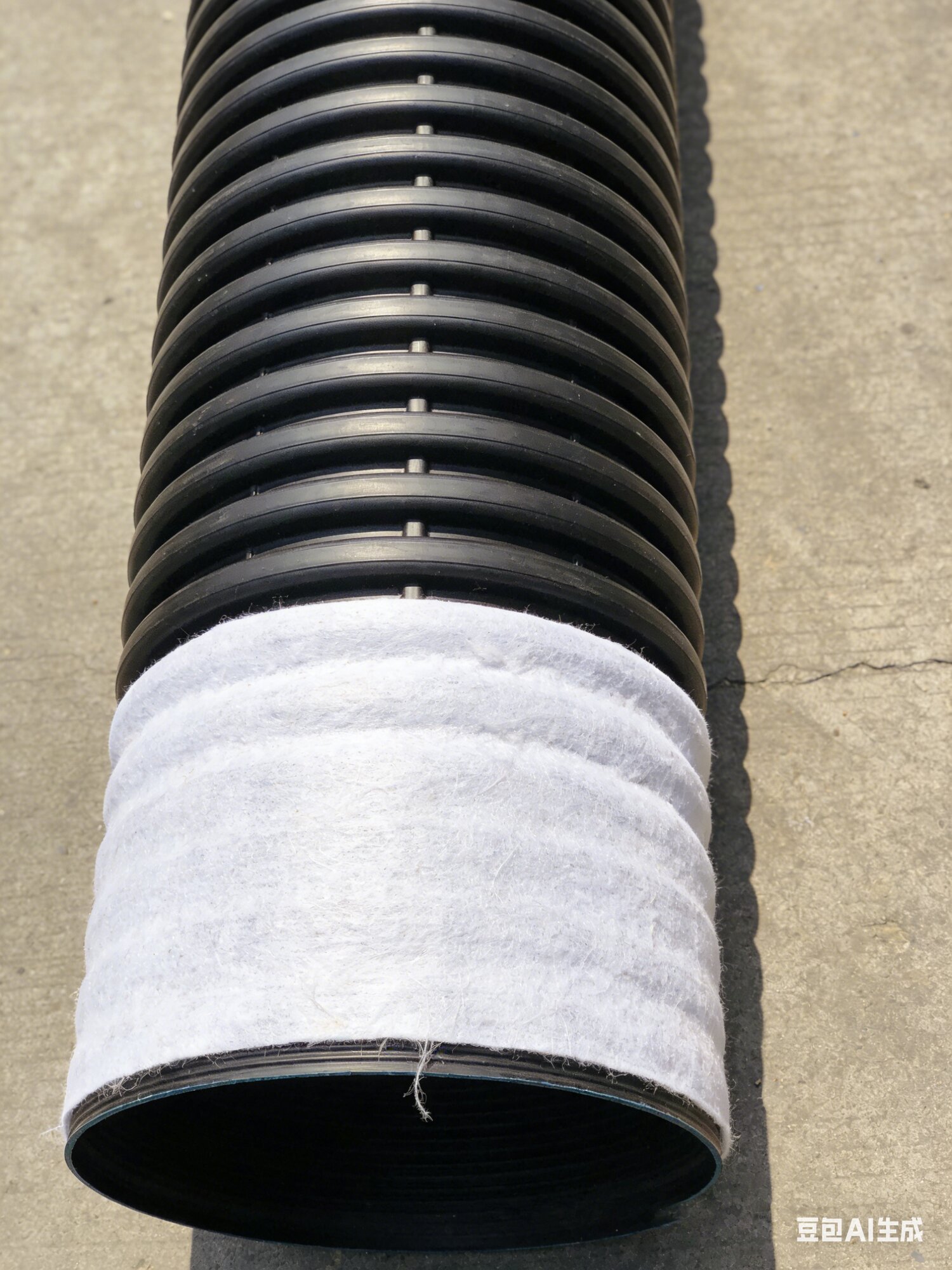

Drainage Corrugated Pipe

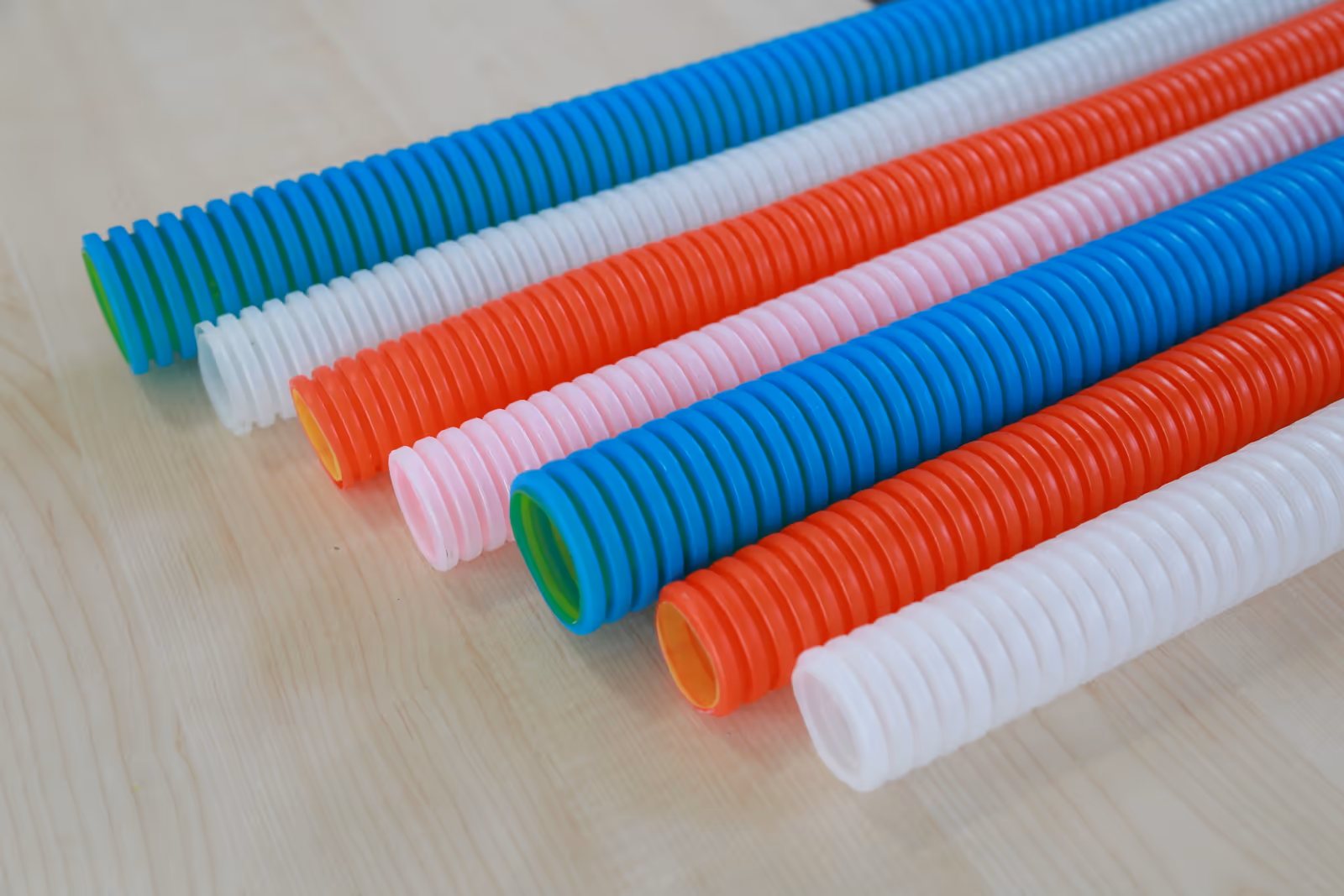

Cable Protection Pipe

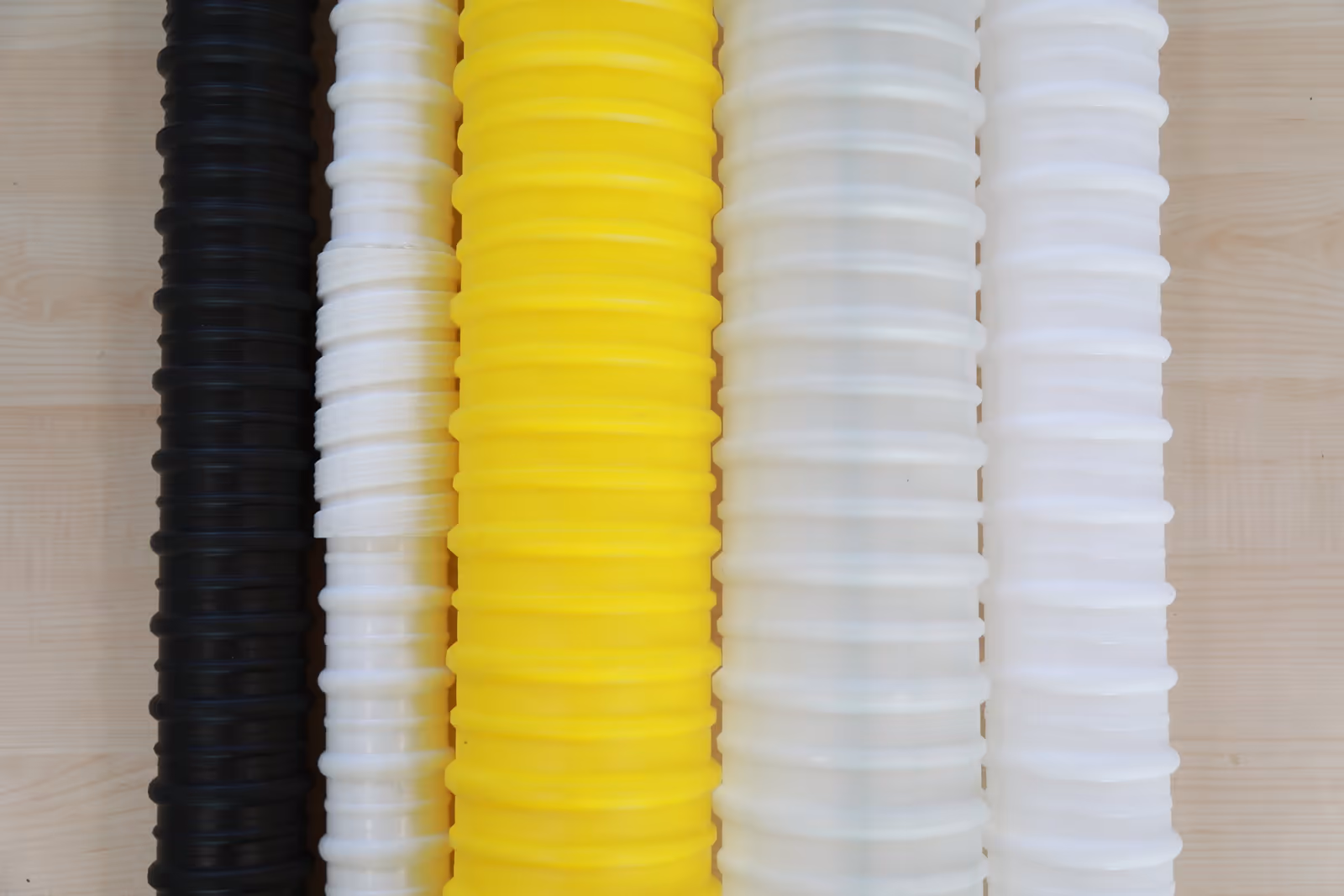

Bridge Prestressed Pipe

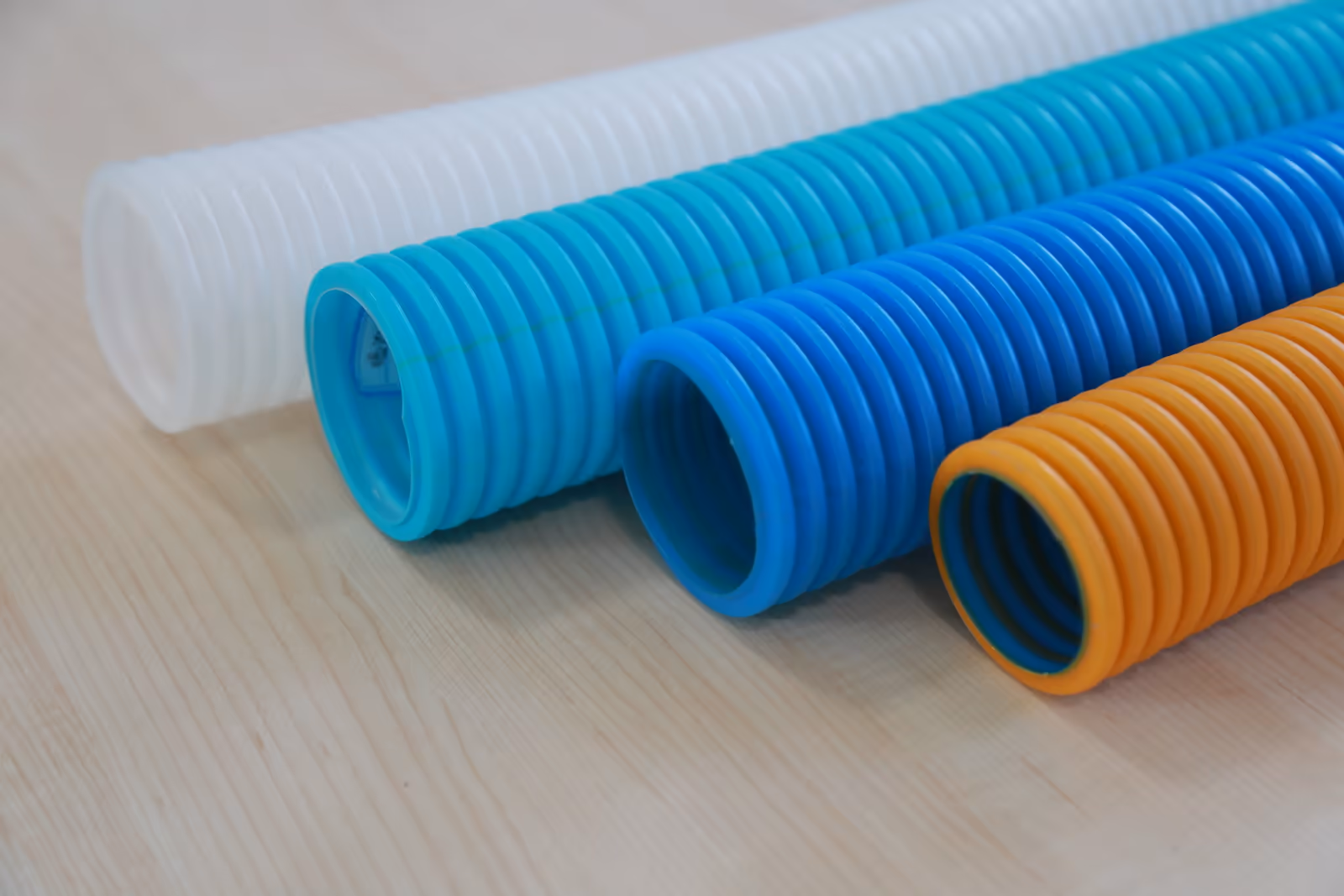

Ventilation Pipe

Water Collection Pipe

SL180 — See It Running

Watch the production line in operation. Full-speed corrugated pipe extrusion from raw material to finished product.

Запросить живую демонстрацию

Production Process

How raw materials become finished pipes

1

Material Preparation

2

Extrusion

3

Die Head Forming

4

Corrugation

5

Cooling & Shaping

6

Cutting & Stacking

Need Component Specifications?

Contact us for detailed specifications, pricing, and compatibility information.

WhatsApp: +86-18765639190 amywang@subamachinery.com

Components & Accessories

Compatible accessories for this production line configuration

Extruder

SJ60, SJ75, SJ90, SJ120, SJ150 single screw extruders with special screw design, suitable for PE, PP and other materials. Using buffering mixing section and large L/D ratio 36:1 screws for good plasticization, high output and wide adaptability to raw materials. Bimetallic screw and barrel effectively improve wear resistance and corrosion resistance, achieving longer service life.

SJ60, SJ75, SJ90,Using buffering mixing

5 featuresView Details

Corrugator

The corrugator adopts a closed loop pressure water cooling system for high forming efficiency. Patented design — mould replacement requires no water tube disassembly. All mould sizes share the same center height; no platform adjustment needed when changing moulds. Left and right frames open and close electrically for easy maintenance. Equipped with UPS and remote control system.

Closed loop pressureAdvanced and high-strength

13 featuresView Details

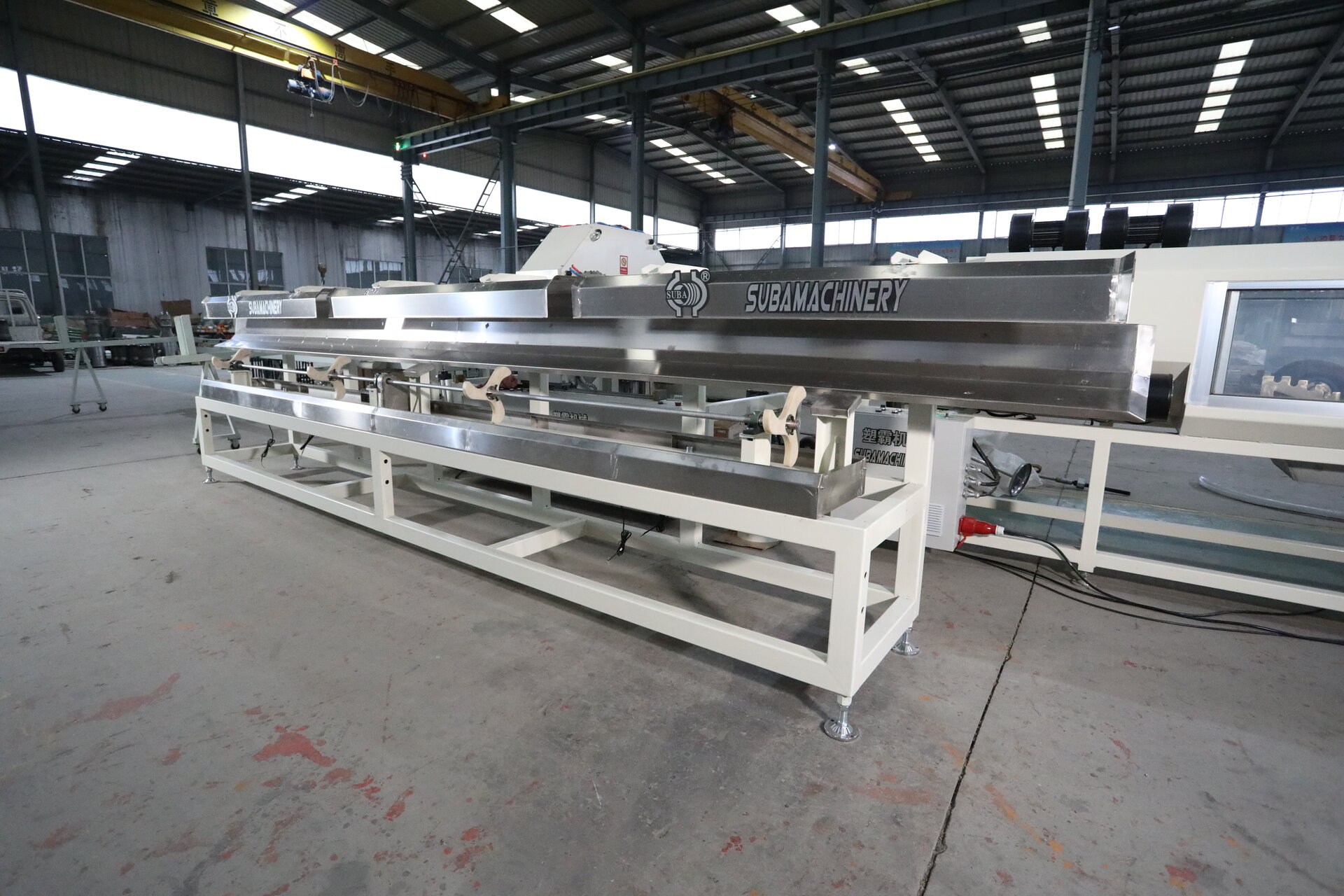

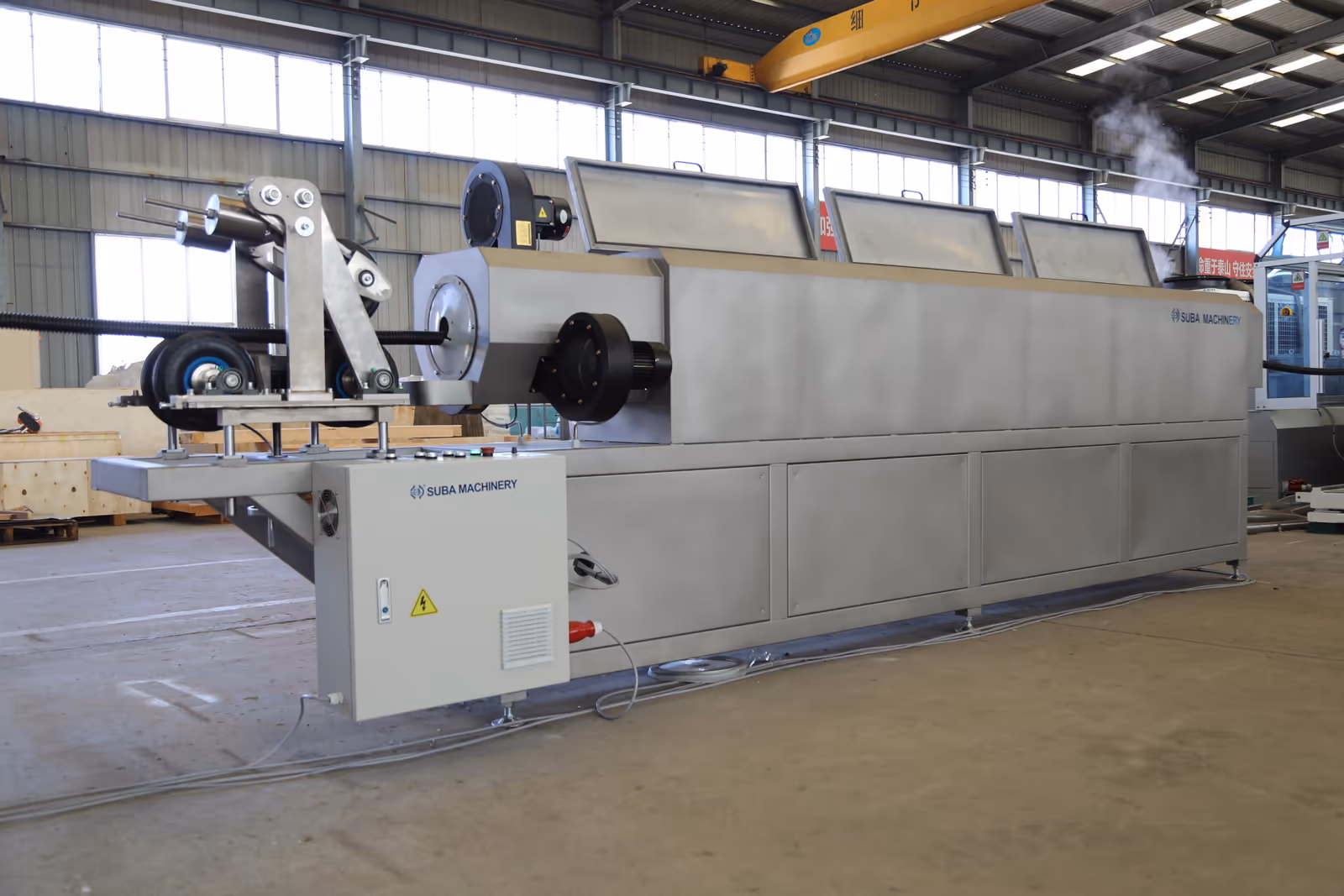

Cooling Tank

Stainless steel cooling tank for secondary cooling of double wall corrugated pipes. Equipped with traction device. High-pressure large capacity water removal device at outlet blows away cooling water on the pipe surface. Synchronous operation with the corrugator. Environmentally friendly: water is fully recycled.

Made of stainlessThe water outlet

5 featuresView Details

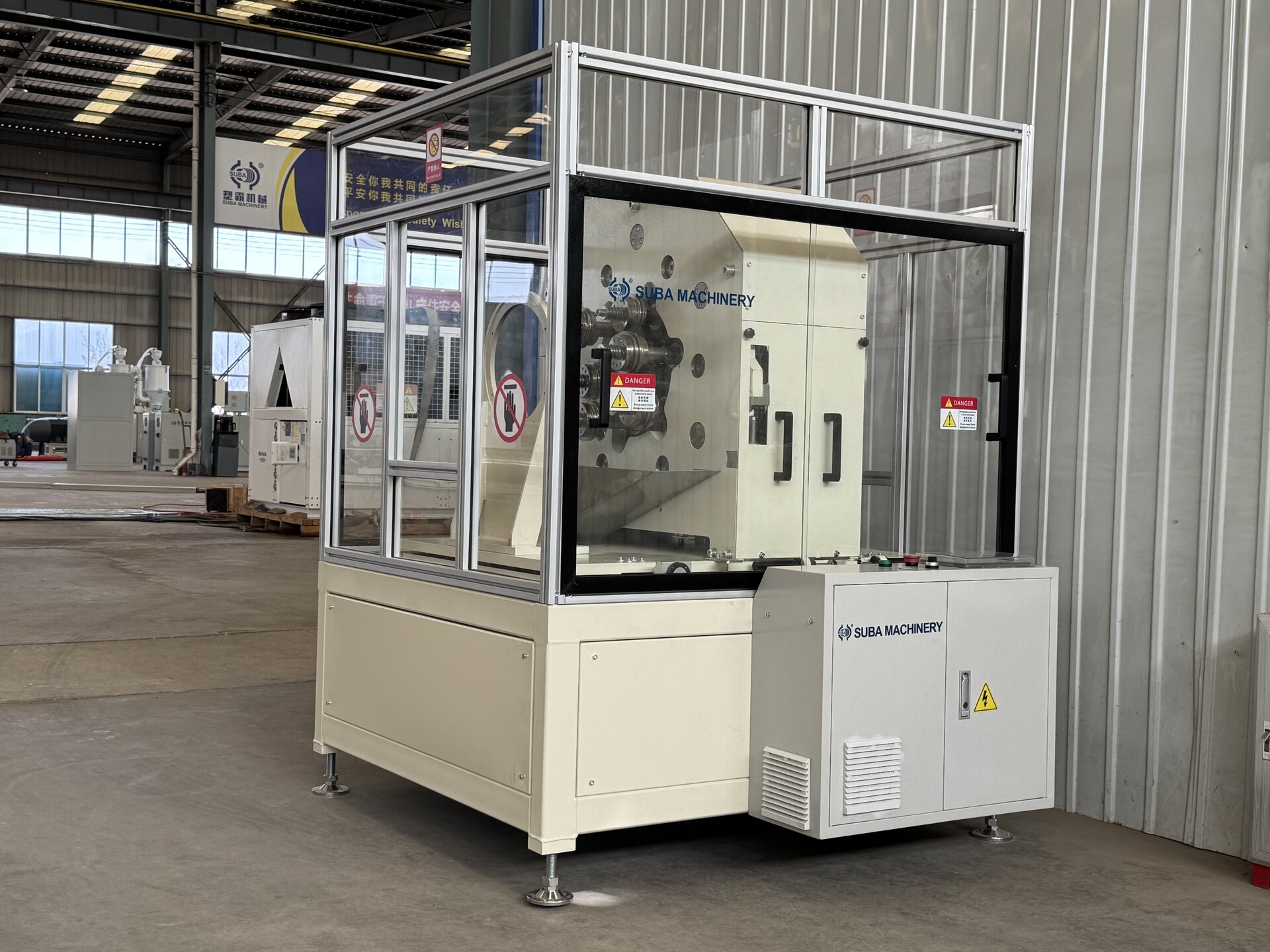

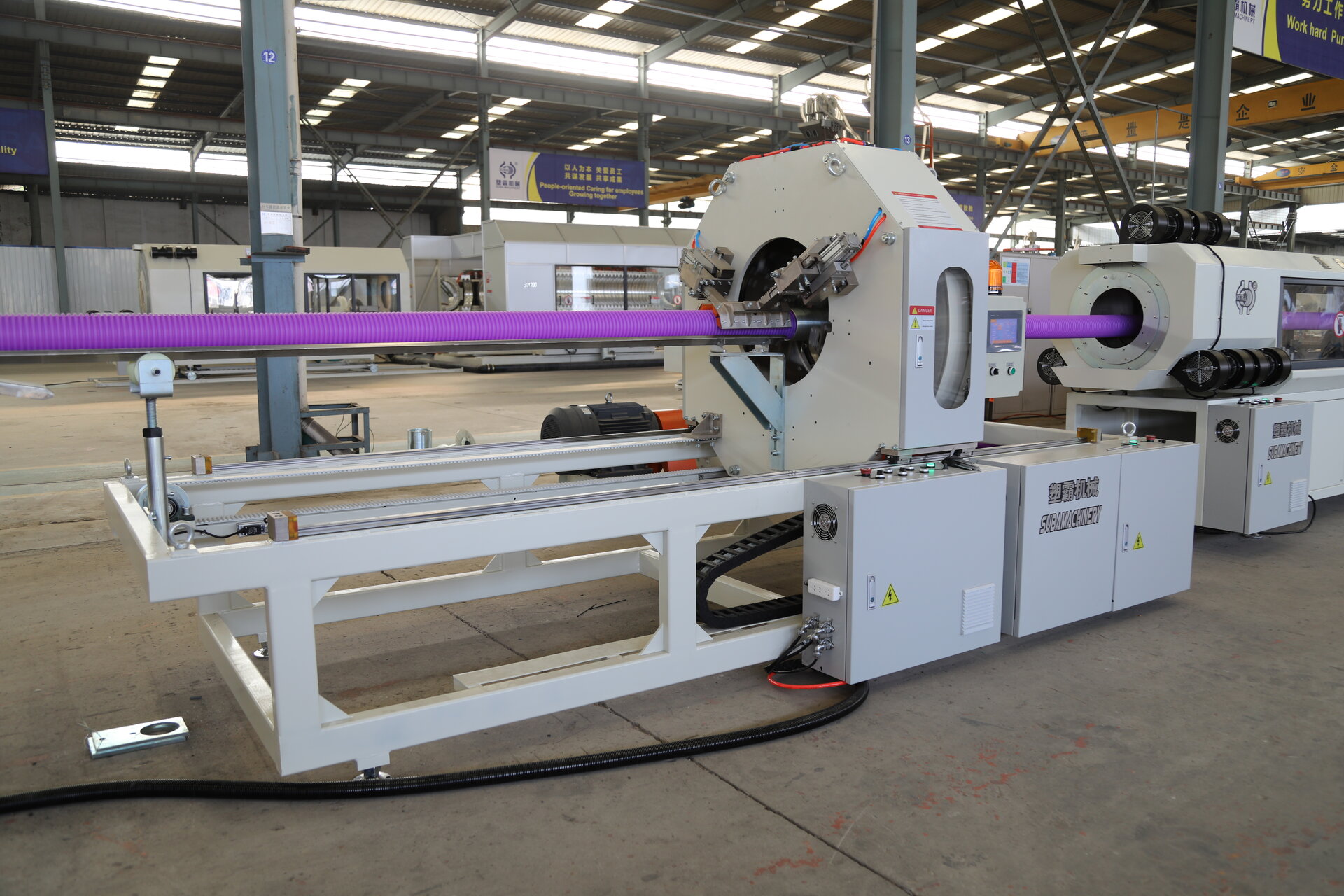

Cutter

High precision cutter independently developed by Suba machinery for accurate cutting of straight pipes and flared pipes. Double blade chipless cutting — noise-free and dust-free. Innovative trigger device guarantees continuously precise cutting. Italian imported dual hydraulic system with turntable bearings and linear guides achieves center-symmetrical, stable operation.

Chipless cutter enableThe cutter's innovative

5 featuresView Details

Stacker

Double wall corrugated pipe extrusion line stacker automatically discharges pipes, equipped with a weighing system. Electric height adjustment reduces labor fatigue. Weighing system monitors pipe production status in real time. Finished pipes can be temporarily stored on the stacker or moved directly into a transport vehicle. Supports automatic pipe turning.

Automatic unloading.Automatic height adjustment.

6 featuresView Details

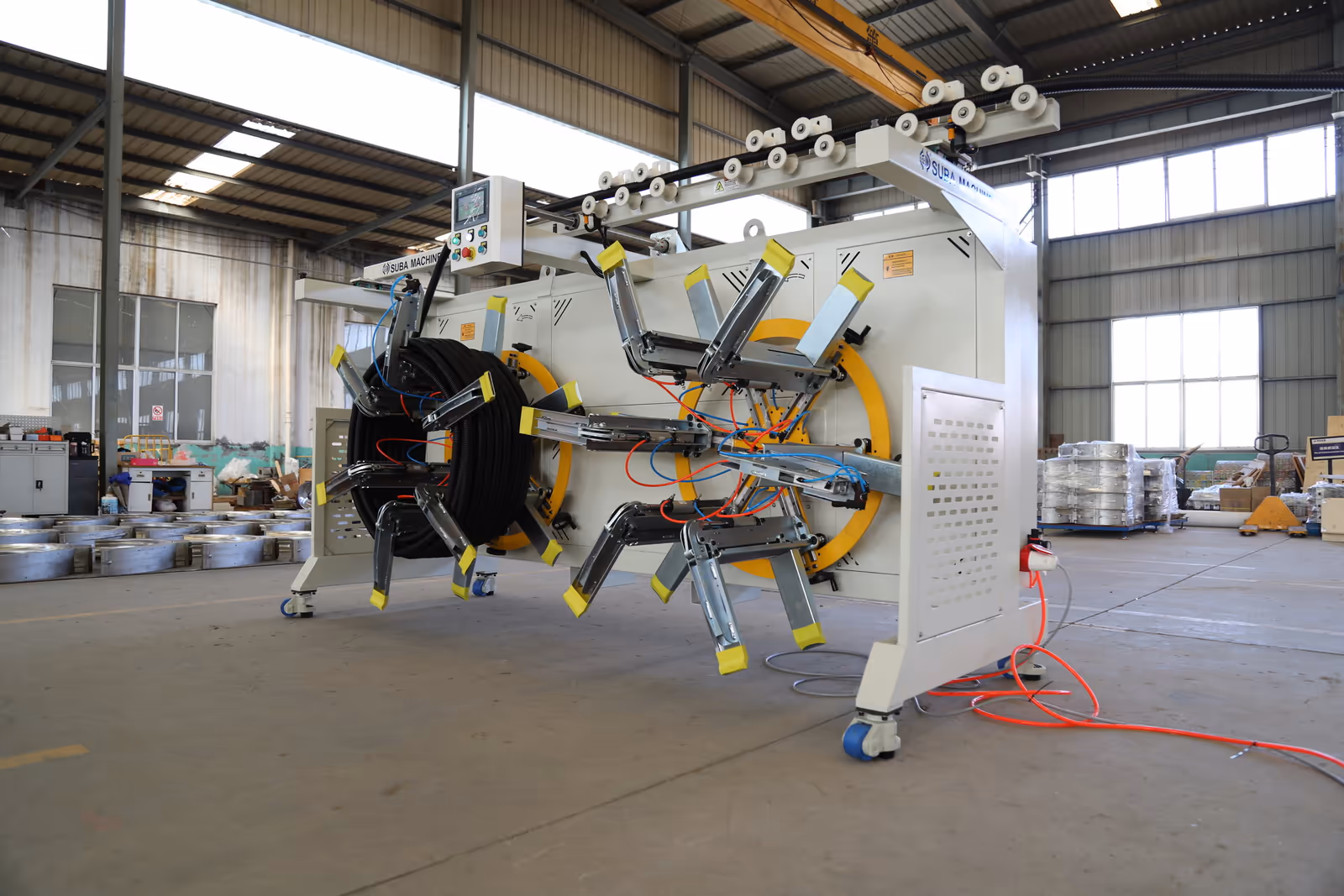

Double Station Coiler

Double station coiler for small-diameter double wall corrugated pipes. Customized services provided based on pipe diameter, coiling length and dimension.

Single and doubleAutomatic winding

5 featuresView Details

Perforator

Double wall corrugated pipe perforator for making holes on pipes. Perforated corrugated pipes are used for rainwater collection applications. Number of holes can be customized per production requirement.

Precise hole positioningAdjustable perforation patterns

5 featuresView Details

Haul-Off Unit

Haul-off unit for fast and stable transportation of small-sized pipes from the corrugator.

Fast and stableSynchronized with corrugation

6 featuresView Details
