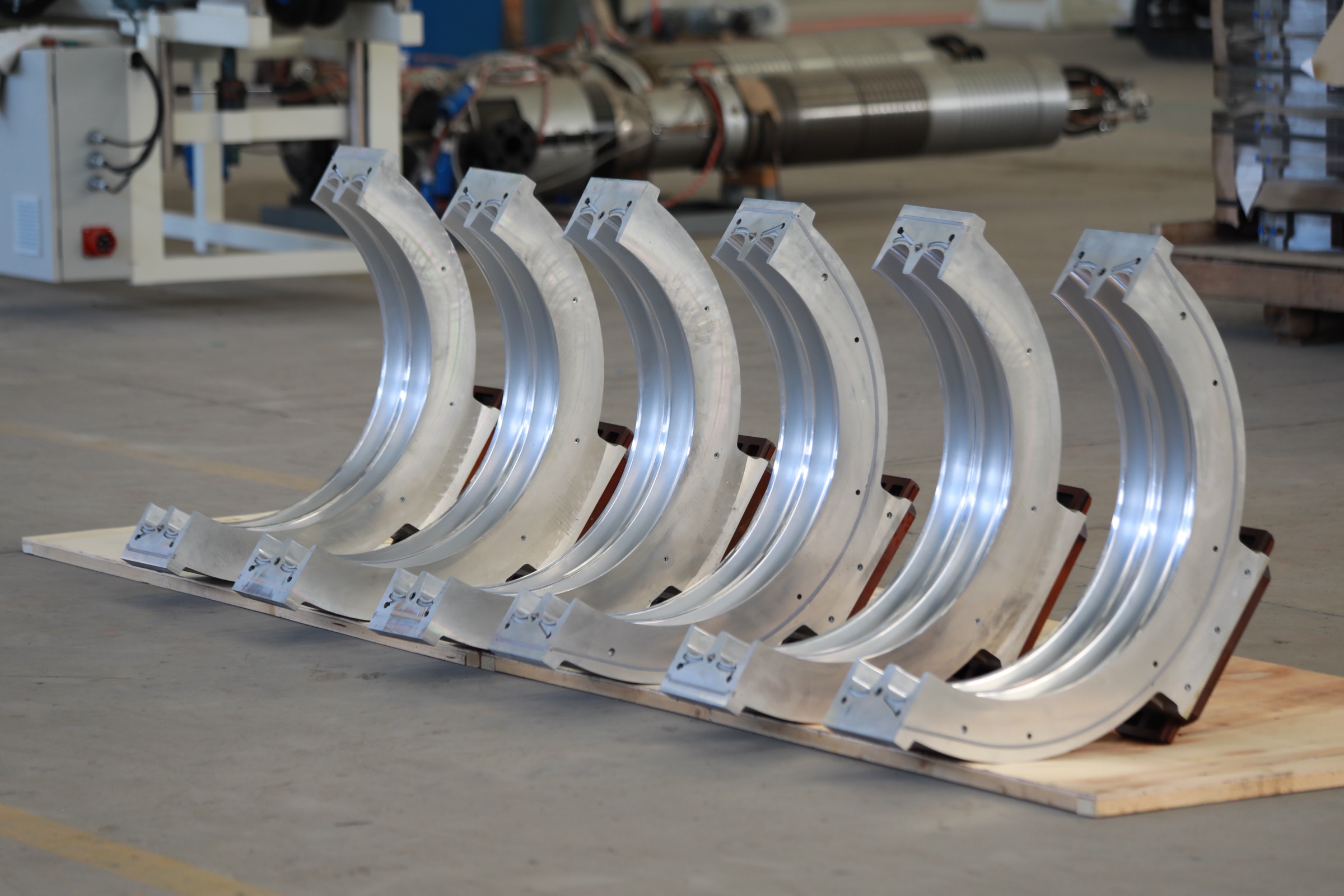

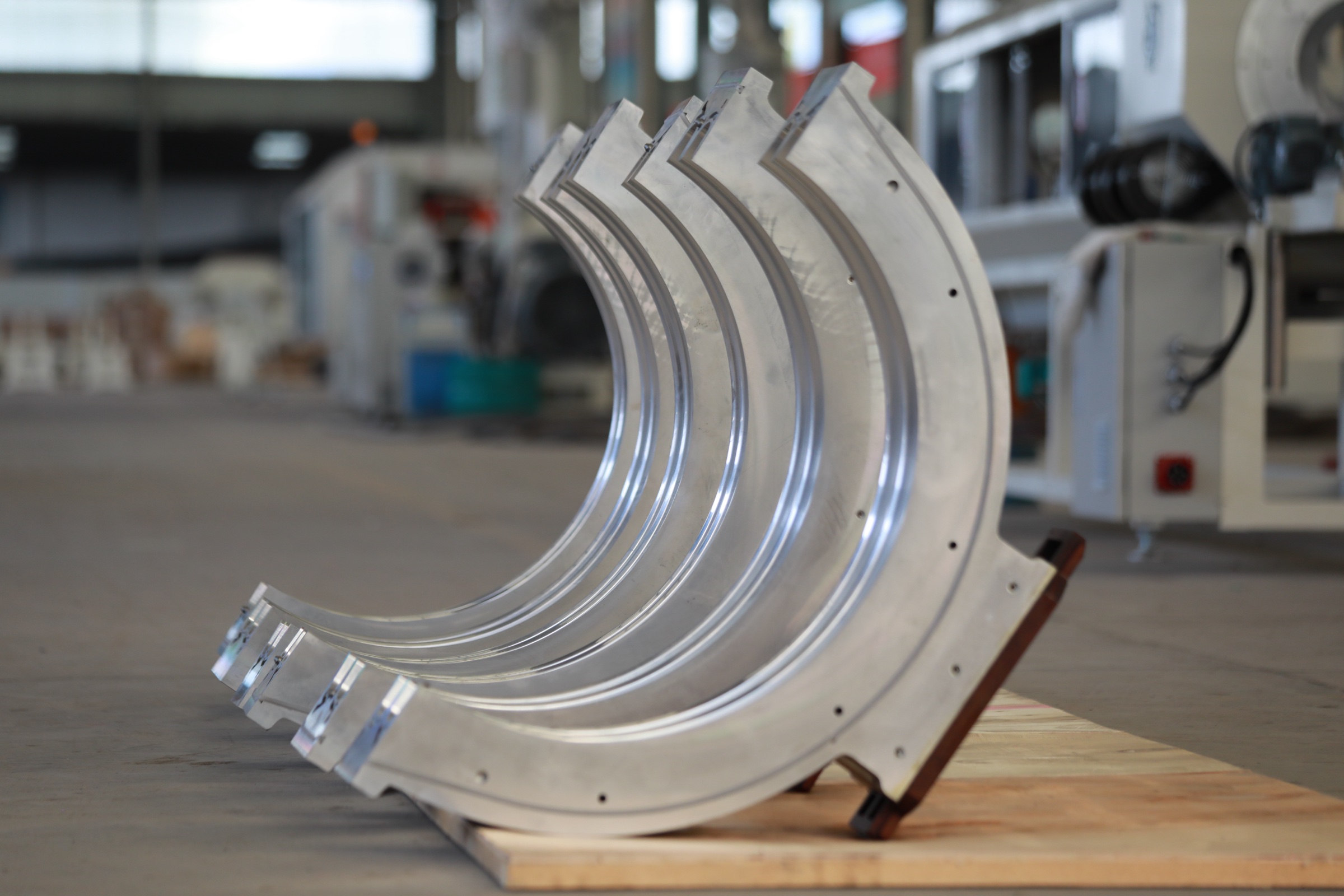

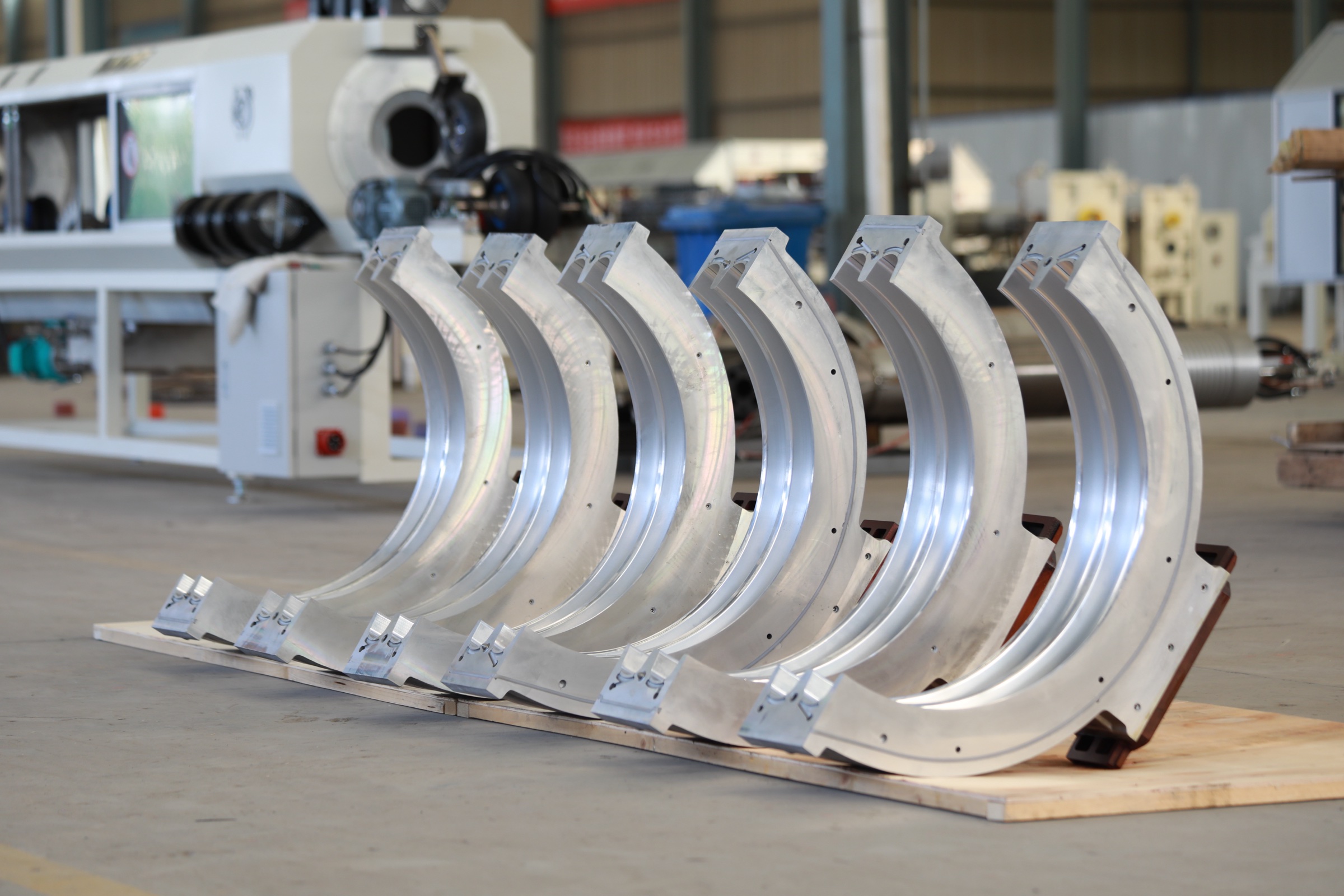

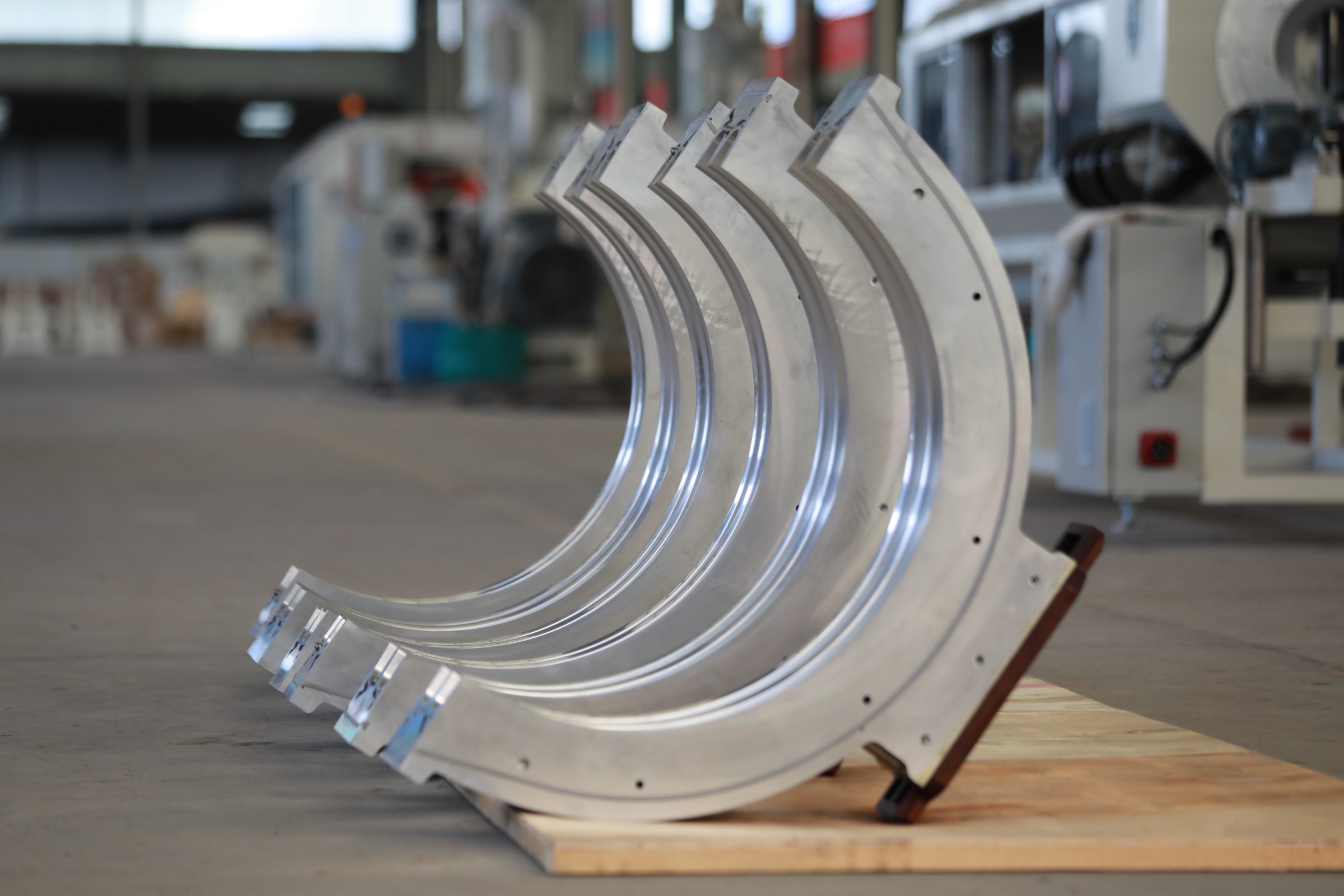

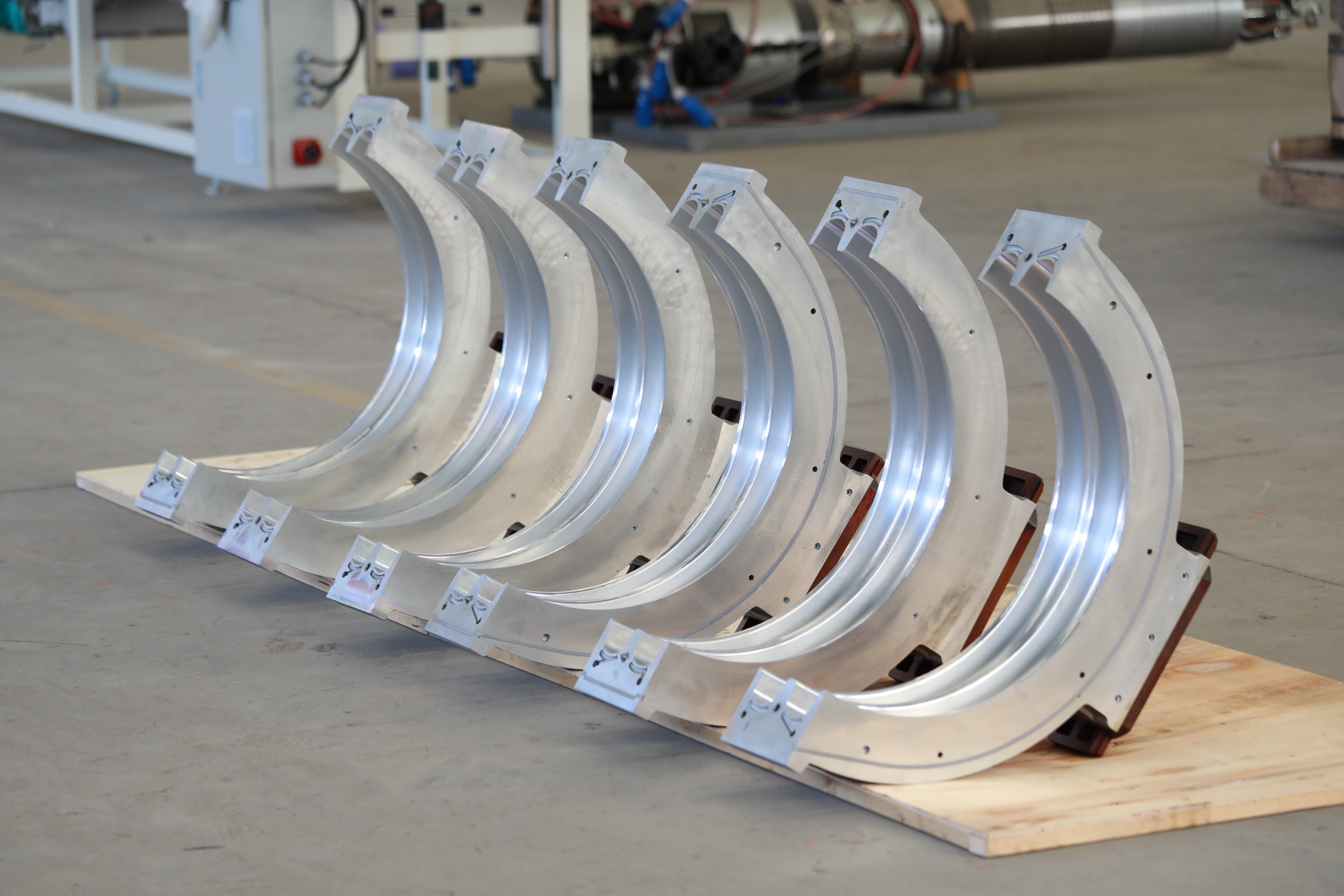

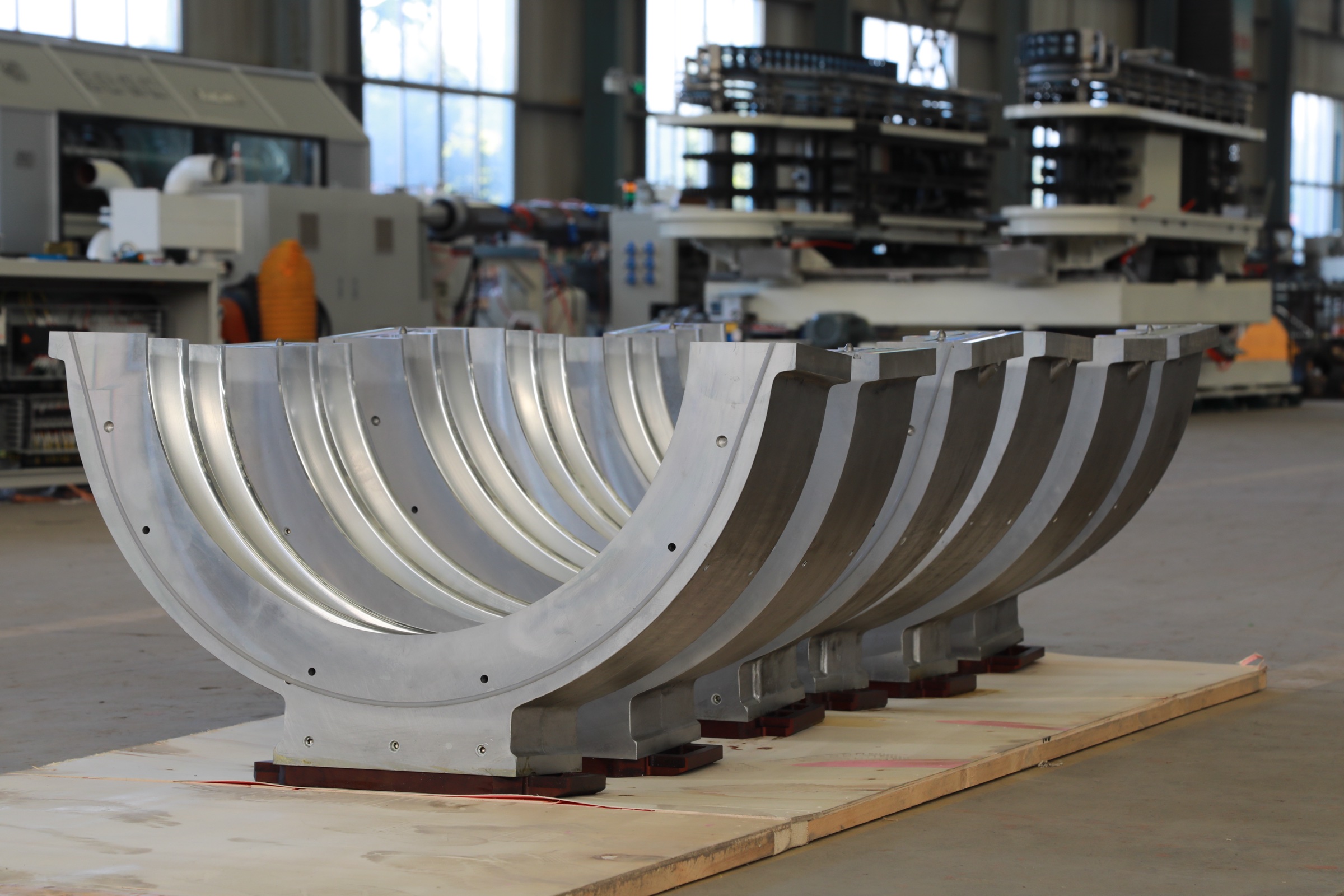

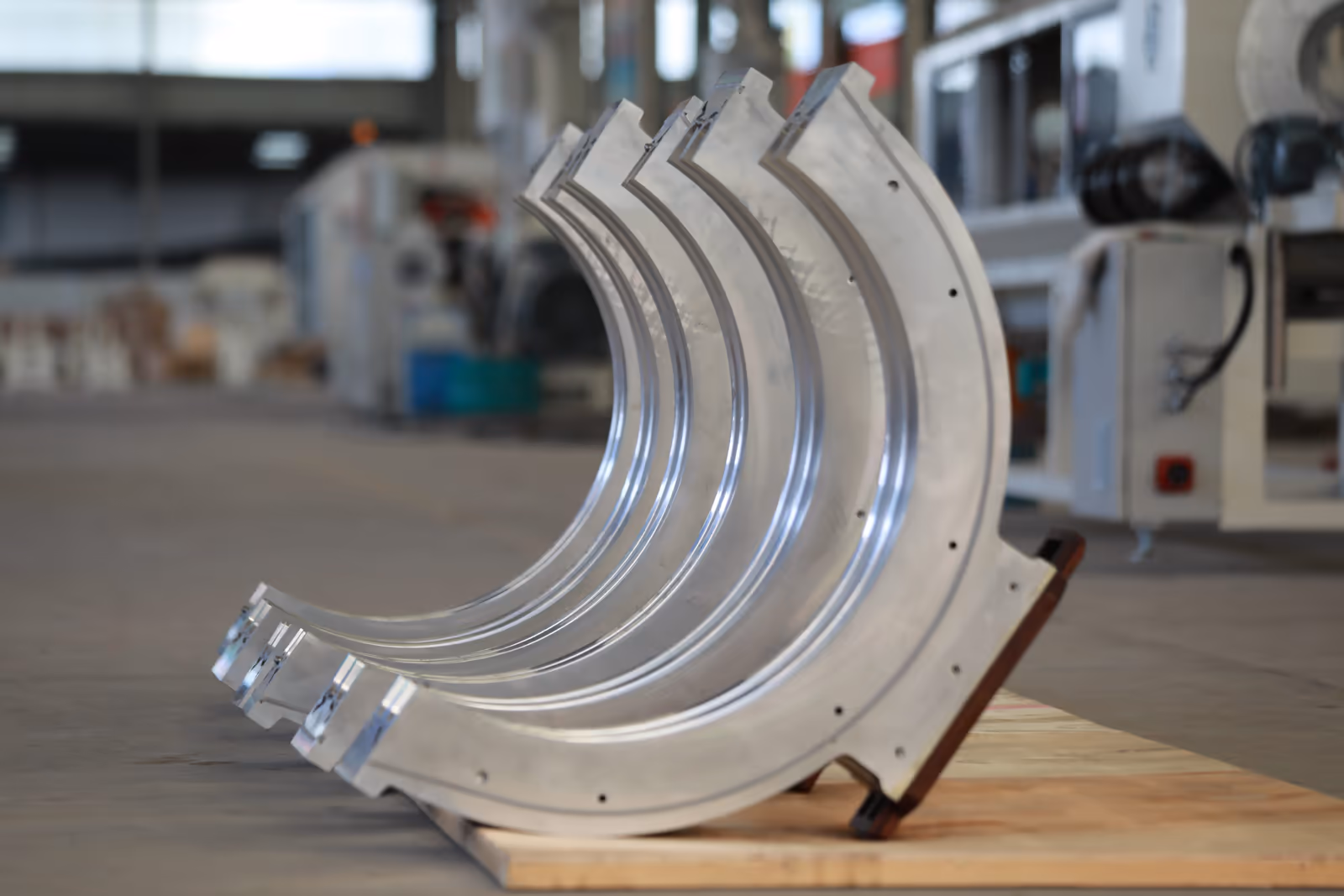

Suba machinery integrated aluminum alloy moulds. Corrugated pipe is formed inside the corrugator — plasticized material is extruded into the forming channel with vacuum technology supporting and optimizing pipe formation. Water cooled moulds guarantee high output and excellent pipe quality. The cooling chamber wall and mould body are the same aluminum alloy material — no insulation layer, best thermal conductivity, high cooling efficiency. Mould surface hardened for long service life. Customized per pipe stiffness class and pipe profile.

Mould

Key Features

Moulds are made of high-quality aluminium alloy.

Water-cooled moulds guarantee high cooling efficiency and high output. The optimized cooling chamber has the largest cooling sectional area and sufficient contact surface between the cooling water and the moulds.

The mould cooling chamber and the mould body are made of same material – special aluminium alloy, and there is no insulation layer between mould chamber wall and mould body. Aluminum alloy has the best thermal conductivity which achieves high cooling efficiency and fast pipe forming speed.

Water temperature control system ensures excellent pipe quality.

Moulds are compatible with different corrugators.

Professional pipe design for pipe of different materials.

Large-diameter moulds are equipped with lifting ports for easy lifting.

Fast changeover time.
